Moxa MPC-2070-E2-T-W7E | MPC-2070 7in Industrial Panel Computer, Atom E3826, 4GB, 32GB CFast, W7E

Authorised Moxa Partner

SKU:MPC-2070-E2-T-W7E

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

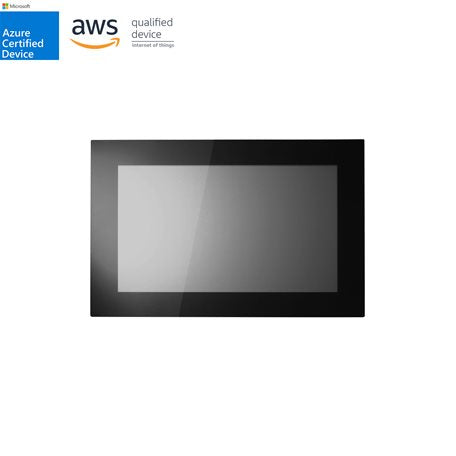

The Moxa MPC-2070-E2-T-W7E is a 7-inch fanless industrial panel computer built around an Intel Atom E3826 processor, with 4 GB DDR3L RAM and a 32 GB CFast card pre-installed and Windows Embedded 7 (W7E) ready to run. It combines a 1000-nit sunlight-readable PCAP multi-touch display with glove support, an IP66-rated front panel and a wide -40 to 70°C operating range, making it well suited to HMI deployments in outdoor, hazardous, rail-onboard and marine environments.

On the I/O side it provides two 10/100/1000 Mbps Ethernet ports, two software-selectable RS-232/422/485 serial ports, two USB 2.0 hosts and 4 DI / 4 DO channels, powered from a 10 to 36 VDC supply. Certifications include ATEX, Class I Division 2, IECEx and DNV, and the unit also supports Windows 10 and Linux Debian 9 for projects that need a different operating system.

Features

- Fanless, ruggedised metal housing for HMI applications in outdoor, hazardous, rail-onboard and marine environments
- 1000-nit sunlight-readable display with PCAP multi-touch and glove support
- IP66-rated front panel
- Wide -40 to 70°C operating temperature range
- ATEX Zone 2, Class I Division 2, IECEx and DNV certifications
- Wide 10 to 36 VDC power input
- Dual Gigabit LAN, dual software-selectable serial ports and DI/DO
- Windows Embedded 7 pre-installed on 32 GB CFast storage

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Atom E3826 processor, 1.46 GHz, 1M cache
- Intel HD Graphics
- 4 GB DDR3L RAM pre-installed, 1 x SODIMM DDR3/DDR3L slot
- 32 GB CFast card pre-installed, plus CFast slot x 1 and SD 3.0 slot x 1
- Pre-installed OS: Windows Embedded 7 (W7E)
- 7-inch TN LCD, 800 x 480, 1000 cd/m2, 600:1 contrast
- Capacitive multi-touch (PCAP), 4 points, glove support
- 2 x 10/100/1000 Mbps Ethernet (RJ45)
- 2 x RS-232/422/485, software selectable (DB9 male)
- 2 x USB 2.0 type-A hosts
- 4 digital inputs, 4 digital outputs
- Input voltage: 10 to 36 VDC, 40 W max.
- IP66 front, IP20 rear, metal housing
- Dimensions: 200 x 140 x 45 mm, weight 1,400 g
- Operating temperature: -40 to 70°C
- Approvals: ATEX, Class I Division 2, IECEx, DNV, FCC Part 15B Class A, RoHS

FAQs

Q: Which operating system is installed on the MPC-2070-E2-T-W7E?
A: It ships with Windows Embedded 7 (W7E) pre-installed on the 32 GB CFast card.

Q: Can it run other operating systems?
A: Yes. Supported operating systems include Windows 7 Pro for Embedded Systems, Windows Embedded Standard 7 (WS7P) 64-bit, Windows 10 Pro 64-bit, Windows 10 Embedded IoT Enterprise 2016 LTSB Entry 64-bit and Linux Debian 9.

Q: What temperature range does it operate in?
A: This model operates from -40 to 70°C, with non-condensing humidity of 5 to 95%.

Q: Is the touchscreen usable with gloves?
A: Yes. The 7-inch display uses capacitive multi-touch (PCAP) with 4 touch points and glove support.

Q: What power supply does it require?
A: It accepts a 10 to 36 VDC input with a maximum power consumption of 40 W.

Q: What I/O does it provide for connecting field equipment?
A: Two 10/100/1000 Mbps Ethernet ports, two software-selectable RS-232/422/485 serial ports, two USB 2.0 hosts and 4 digital inputs plus 4 digital outputs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
