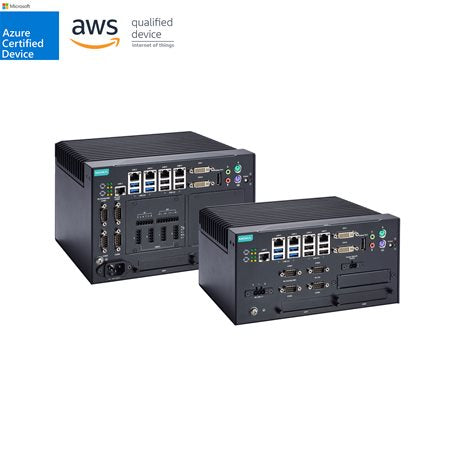

Moxa MC-7420-C7-AC | MC-7400 Marine Computer, Core i7, 4GB, 4x NMEA, AC

Authorised Moxa Partner

SKU:MC-7420-C7-AC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MC-7400 marine computer in the MC-7420-C7-AC model is a DNV GL-certified industrial PC built on a 6th Gen Intel Core i7-6822EQ processor with 4 GB DDR4 memory and an AC power input of 100 to 240 VAC. It is designed for shipboard monitoring and control, with 4 x NMEA 0183 ports, 4 digital inputs and 4 digital outputs, and compliance with the IEC 60945 maritime standard.

Three independent display outputs (DVI-I, DVI-D and DisplayPort), 5 Gigabit LAN ports, 4 serial ports and 9 USB ports provide the connectivity needed for integrating navigation, automation and data-logging systems. Two removable 2.5 inch storage bays, two SO-DIMM slots supporting up to 32 GB and a mini PCIe slot for wireless expansion allow the platform to be configured for the application. It supports Windows 10 IoT Enterprise and Debian 9 through Moxa's CTOS service, and operates from -25 to 55 degrees Celsius.

Features

- DNV GL certified marine computer meeting the IEC 60945 maritime standard
- 6th Gen Intel Core i7-6822EQ processor platform
- 3 independent display outputs: DVI-I, DVI-D and DisplayPort
- 4 x NMEA 0183 ports for shipboard instrument integration
- 5 Gigabit LAN ports, 4 serial ports and 9 USB ports
- 4 digital inputs and 4 digital outputs for control and alarm signalling
- DDR4 SO-DIMM memory expandable to 32 GB
- 2 removable 2.5 inch storage bays
- Mini PCIe expansion slot for wireless
- Built-in watchdog timer for automatic reboot
- Moxa Proactive Monitoring utility with relay and SNMP trap alerts
- Supports Windows 10 IoT Enterprise and Debian 9 via CTOS

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Core i7-6822EQ (6M Cache, up to 2.80 GHz)
- Chipset: Intel QM170, graphics: Intel HD Graphics 530
- Memory: 4 GB DDR4-2133 pre-installed, 2 x SO-DIMM slots (up to 32 GB)
- Storage: 2 x removable 2.5 inch HDD/SSD bays
- Ethernet: 5 x 10/100/1000 Mbps RJ45 ports
- Serial: 2 x RS-232 and 2 x RS-232/422/485 (software selectable), DB9 male
- NMEA: 4 x NMEA 0183 ports (RS-422, 4800 bps, 3 kV optical isolation), terminal block
- Digital I/O: 4 x DI, 4 x DO
- USB: 5 x USB 2.0 and 4 x USB 3.0 type-A
- Video: DVI-I, DVI-D and DisplayPort outputs, 3 independent displays
- Audio: 1 x line in, 1 x line out (3.5 mm)
- Power: 100 to 240 VAC input, 100 W consumption
- Dimensions with ears: 240 x 209 x 160 mm, weight 6000 g
- Housing: metal
- Operating temperature: -25 to 55 degrees Celsius
- Certifications: IEC 60945, DNV GL, CE, IEC 62368-1, UL 60950-1, FCC Part 15B Class A

FAQs

Q: What power input does the MC-7420-C7-AC use?
A: This model has an AC power input of 100 to 240 VAC with a typical power consumption of 100 W. The MC-7400 series is also offered in DC power models.

Q: Which operating systems are supported?
A: The MC-7420-C7-AC supports Windows 10 Embedded IoT Enterprise 2016 LTSB and Debian 9 Linux, with the operating system available by Moxa's CTOS service.

Q: How many displays can it drive?
A: It supports three independent displays using the DVI-I, DVI-D and DisplayPort outputs.

Q: How much memory and storage does it support?
A: It ships with 4 GB of DDR4-2133 memory and has two SO-DIMM slots supporting up to 32 GB. Storage is provided by two removable 2.5 inch HDD/SSD bays.

Q: Does it support wireless connectivity?
A: Yes, it includes a mini PCIe expansion slot that can be used for wireless modules.

Q: What marine certifications does it carry?
A: It is DNV GL certified and complies with the IEC 60945 maritime standard, along with CE, UL 60950-1 and FCC Part 15B Class A.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
