Moxa MC-3201-TGL7-S-S | MC-3201 Fanless Industrial Computer, Core i7-1185G7E, 8GB, 9-36 VDC

Authorised Moxa Partner

SKU:MC-3201-TGL7-S-S

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

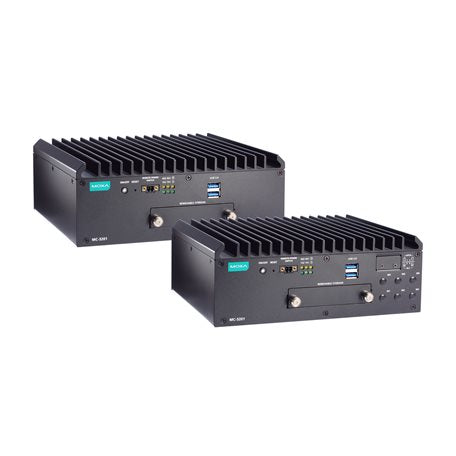

The Moxa MC-3201-TGL7-S-S is a compact, fanless x86 industrial computer built around an 11th Gen Intel Core i7-1185G7E (Tiger Lake U) processor with Intel Iris Xe Graphics and 8 GB of pre-installed DDR4 memory. Designed for IIoT, AI and marine applications, it runs from a 9 to 36 VDC supply and operates from -20 to 55°C at full CPU speed, making it suited to demanding field and onboard deployments.

Connectivity includes 4 Gigabit Ethernet ports, 2 software-selectable RS-232/422/485 serial ports, 2 USB 3.0 and 4 USB 2.0 ports, and 2 DisplayPort outputs supporting up to 3840 x 2160 at 60 Hz. The metal housing is wall-mountable, a built-in TPM 2.0 module supports platform security, and the system supports Windows 10 IoT Enterprise LTSC 2021 with Linux Debian 11 driver support.

Features

- 11th Gen Intel Core i7-1185G7E (Tiger Lake U) processor with Iris Xe Graphics
- Fanless metal housing with full-speed CPU operation from -20 to 55°C
- 4 x Gigabit Ethernet ports for multi-network and redundant connections
- 2 x software-selectable RS-232/422/485 serial ports for legacy device integration
- Dual DisplayPort outputs up to 4K at 60 Hz
- 2 DDR4 SODIMM slots expandable to 32 GB
- M.2 B key and E key sockets for cellular, GPS, Wi-Fi and Bluetooth expansion modules
- Built-in TPM 2.0 for platform security
- Wide 9 to 36 VDC power input
- Complies with IEC-60945 and IACS E10 marine standards

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-1185G7E, 4 cores / 8 threads, up to 1.8 GHz, 12M cache
- Graphics: Intel Iris Xe Graphics
- Memory: 8 GB DDR4 pre-installed, 2 x SODIMM DDR4 2133 slots, up to 32 GB
- Storage: 1 x 2.5-inch HDD/SSD slot
- Ethernet: 4 x 10/100/1000 Mbps (RJ45), 1.5 kV magnetic isolation
- Serial: 2 x RS-232/422/485 (DB9 male), software selectable, 50 bps to 115.2 kbps
- USB: 2 x USB 3.0 and 4 x USB 2.0 (Type-A)
- Video: 2 x DisplayPort, up to 3840 x 2160 at 60 Hz
- Audio: 1 x line in, 1 x line out (3.5 mm)
- Security: TPM v2.0
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Linux Debian 11 (kernel 5.10, 64-bit) driver support
- Power input: 9 to 36 VDC
- Operating temperature: -20 to 55°C (-4 to 131°F)
- Storage temperature: -30 to 60°C (-22 to 140°F)
- Humidity: 5 to 95% non-condensing
- Dimensions: 220 x 80 x 170 mm, weight 3,000 g
- Housing: metal, wall mounting
- Safety: UL 62368-1, EN 62368-1, IEC 62368-1, IEC 60950-1
- EMC/EMI: EN 55032/35, CISPR 32, FCC Part 15B Class A
- MTBF: 323,270 hrs (Telcordia TR/SR)

FAQs

Q: What processor and memory does the MC-3201-TGL7-S-S include?
A: It uses an Intel Core i7-1185G7E processor with Intel Iris Xe Graphics and ships with 8 GB of DDR4 memory. The two SODIMM slots support up to 32 GB.

Q: What operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021 is supported, with driver support for Linux Debian 11 (kernel 5.10, 64-bit).

Q: What power input and operating temperature does this model support?
A: It accepts a 9 to 36 VDC input and operates from -20 to 55°C at full CPU speed.

Q: Can I add wireless or cellular connectivity?
A: Yes. The series provides an M.2 B key socket for cellular, GPS or M.2 SATA SSD modules and an M.2 E key socket for Wi-Fi and Bluetooth modules.

Q: How many displays can it drive?
A: It has 2 DisplayPort outputs, each supporting resolutions up to 3840 x 2160 at 60 Hz.

Q: What serial interfaces are available?
A: There are 2 DB9 male serial ports, each software selectable between RS-232, RS-422 and RS-485.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
