Moxa MC-3201(CTO) | MC-3201 Industrial x86 Computer, Celeron 6305E, 9-36 VDC

Authorised Moxa Partner

SKU:MC-3201(CTO)

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

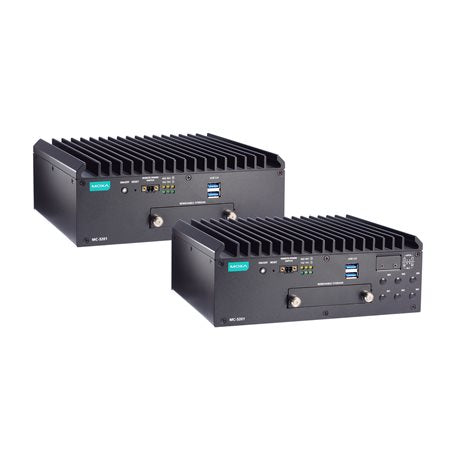

The MC-3201 (CTO) is a compact, fanless industrial x86 computer built on an Intel Celeron 6305E processor, with 4 Gigabit Ethernet ports, 2 serial ports and 2 DisplayPort outputs. This configuration accepts a 9-36 VDC input and provides M.2 B-key, M.2 E-key and mPCIe expansion slots, making it a flexible platform for IIoT, edge computing and marine applications in the -20 to 55°C range.

Two SODIMM DDR4 slots support up to 32 GB of memory, and a 2.5-inch HDD/SSD slot handles local storage. Two USB 3.0 and four USB 2.0 type-A ports, line in/out audio and a built-in TPM v2.0 module round out the connectivity and security options. The metal housing is wall-mountable and supports Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 11 driver support.

Features

- Fanless industrial x86 platform on an 11th Gen Intel processor (Tiger Lake U)
- Four Gigabit LAN ports with 1.5 kV built-in magnetic isolation protection
- Two software-selectable RS-232/422/485 serial ports for legacy device connectivity
- Dual DisplayPort outputs supporting up to 4K at 60 Hz
- Expansion via M.2 B-key, M.2 E-key and mPCIe slots in the CTO build
- Built-in TPM 2.0 module for hardware-based security
- Wide 9-36 VDC power input suited to industrial and marine installations
- Moxa Proactive Monitoring utility for predictive maintenance

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Intel Celeron 6305E processor (4M Cache, up to 1.8 GHz)
- Intel Iris Xe Graphics
- 2 x SODIMM DDR4 2133 slots, up to 32 GB
- 4 x 10/100/1000 Mbps Ethernet (RJ45)
- 2 x RS-232/422/485 serial ports (DB9 male), software selectable
- 2 x USB 3.0 and 4 x USB 2.0 (type-A)
- 2 x DisplayPort, up to 3840 x 2160 at 60 Hz
- 1 x 2.5-inch HDD/SSD slot
- Line in x 1, Line out x 1 (3.5 mm)
- M.2 B-key, M.2 E-key and mPCIe expansion slots (CTO configuration)
- TPM v2.0
- 9 to 36 VDC input
- Operating temperature: -20 to 55°C (-4 to 131°F)
- Dimensions: 220 x 80 x 170 mm, weight 3,000 g
- Metal housing, wall mounting

FAQs

Q: What does CTO mean for the MC-3201 (CTO)?
A: CTO is a configure-to-order build. This SKU uses the Intel Celeron 6305E with a 9-36 VDC input and provides M.2 B-key, M.2 E-key and mPCIe expansion slots.

Q: What power input does this model use?
A: It accepts a 9 to 36 VDC input. A power-jack-to-terminal-block cable is included in the package.

Q: How much memory can it support?
A: The two SODIMM DDR4 2133 slots support up to 32 GB in total.

Q: Which operating systems are supported?
A: The MC-3201 supports Windows 10 IoT Enterprise LTSC 2021 and has driver support for Linux Debian 11 (kernel 5.10), 64-bit.

Q: What display outputs does it provide?
A: Two DisplayPort outputs, each supporting resolutions up to 3840 x 2160 at 60 Hz.

Q: How is it mounted and what temperatures can it handle?
A: It is wall-mounted using the included mounting kit and operates from -20 to 55°C (-4 to 131°F) with 5 to 95% non-condensing humidity.
