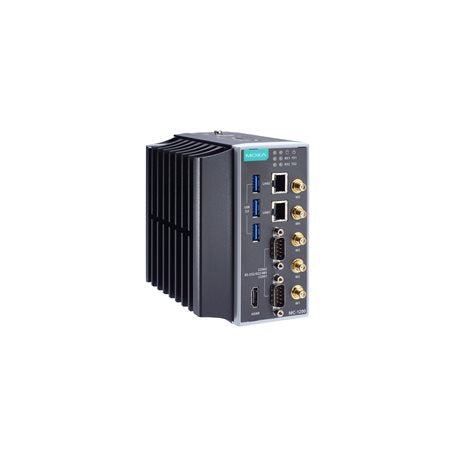

Moxa MC-1220-T-S(CTO) | MC-1200 Fanless Edge Computer, Celeron 3965U, 2 LAN, 2 Serial, CTO

Authorised Moxa Partner

SKU:MC-1220-T-S(CTO)

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MC-1220-T-S (CTO) is a fanless, ultra-compact rugged industrial edge computer from the MC-1200 Series, built on a 7th Gen Intel Celeron 3965U processor for IIoT, AI and machine-learning workloads. This configure-to-order variant provides 2 Gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports and 3 USB 3.0 ports, with an operating range of -40 to 70°C for harsh industrial environments.

Expansion is handled by 3 Mini-PCIe sockets (one supporting mSATA) for Wi-Fi, cellular, GPS and storage modules, alongside 2 DDR4 SODIMM slots supporting up to 32 GB. A built-in TPM 2.0 module, 9 to 36 VDC input, HDMI output up to 4K at 30 Hz and DIN-rail mounting make it well suited to remote monitoring, data acquisition and edge gateway deployments. Hazardous location approvals include ATEX Zone 2, IECEx Zone 2 and Class I Division 2.

Features

- Fanless, wide-temperature design for -40 to 70°C operation
- 7th Gen Intel Celeron processor for IIoT, AI and machine-learning workloads
- 3 Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS and mSATA expansion modules
- 2 DDR4 SODIMM slots supporting up to 32 GB
- Built-in TPM 2.0 for hardware-based security
- 2 Gigabit LAN, 2 serial and 3 USB 3.0 ports for flexible connectivity
- Hazardous location compliance including ATEX Zone 2, IECEx Zone 2 and Class I Division 2
- Moxa Proactive Monitoring utility with relay and SNMP trap alerts
- DIN-rail mounting kit included

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- CPU: Intel Celeron 3965U, 2 cores, 2.2 GHz, 2M cache
- Graphics: Intel HD Graphics 610
- Memory: 2 x DDR4 SODIMM slots, up to 32 GB
- Storage expansion: 1 x mSATA (SATA 3.0) via internal Mini-PCIe socket
- Expansion: 3 x Mini-PCIe sockets
- Ethernet: 2 x 10/100/1000BaseT(X) RJ45 ports with 1.5 kV magnetic isolation
- Serial: 2 x RS-232/422/485 (software selectable), DB9 male, 50 bps to 115.2 kbps
- USB: 3 x USB 3.0 Type-A
- Video output: 1 x HDMI, up to 3840 x 2160 at 30 Hz
- Security: built-in TPM 2.0
- Power input: 9 to 36 VDC
- Power consumption: 72 W
- Operating temperature: -40 to 70°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Dimensions: 134 x 60.4 x 120 mm
- Weight: 1.40 kg
- Housing: metal, fanless
- Mounting: DIN-rail, wall mount with optional kit
- Hazardous locations: ATEX Zone 2, IECEx Zone 2, Class I Division 2
- MTBF: 510,913 hours

FAQs

Q: What does the CTO suffix mean on the MC-1220-T-S (CTO)?
A: CTO stands for configure-to-order. It is a build-to-specification variant based on the MC-1220-KL1-T-S Celeron model, allowing memory, storage and operating system options to be tailored to the deployment.

Q: How much memory does the MC-1220-T-S (CTO) support?
A: It has 2 DDR4 SODIMM slots supporting up to 32 GB in total.

Q: Which operating systems can run on this computer?
A: Linux Debian 9 64-bit (kernel 4.9) and Windows 10 Enterprise LTSC 1809 64-bit are available as optional configure-to-order operating systems.

Q: What expansion options are available?
A: It provides 3 Mini-PCIe sockets, one of which supports mSATA, for adding Wi-Fi, cellular, GPS or storage modules.

Q: Can it operate in extreme temperatures and hazardous locations?
A: Yes. The fanless design supports -40 to 70°C operation, and it carries ATEX Zone 2, IECEx Zone 2 and Class I Division 2 hazardous location compliance.

Q: How is the MC-1220-T-S (CTO) powered and mounted?
A: It accepts 9 to 36 VDC input and mounts on a DIN rail, with an optional kit available for wall mounting.
