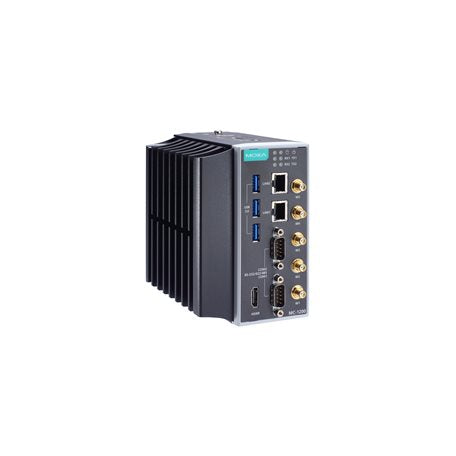

Moxa MC-1220-KL7-T-S | MC-1200 Fanless Embedded Computer, Core i7-7600U, 8GB, TPM 2.0

Authorised Moxa Partner

SKU:MC-1220-KL7-T-S

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MC-1200 fanless embedded computer is an ultra-compact, rugged x86 edge computer built on a 7th Gen Intel Core i7-7600U (Kaby Lake U) processor, with 8 GB of DDR4 memory, built-in TPM 2.0 and an extended -40 to 70°C operating temperature range. With no moving parts, it suits IIoT gateways, oil and gas, solar, water and transportation deployments where reliability under heat, cold, vibration and power surges matters.

Connectivity includes 2 gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports, 3 USB 3.0 Type-A ports and HDMI output up to 3840 x 2160 at 30 Hz. Three mini-PCIe sockets allow Wi-Fi, 3G, LTE, GPS or mSATA modules to be added, and the 9 to 36 VDC input, DIN-rail mounting and hazardous location approvals (ATEX Zone 2, IECEx Zone 2, Class I Division 2) support installation in demanding industrial environments.

Features

- Fanless, metal housing designed for extreme temperature, humidity, vibration and power surge conditions
- 7th Gen Intel Core i7-7600U (Kaby Lake U) processor for demanding edge workloads
- Three mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS and mSATA expansion modules
- Built-in TPM 2.0 module for hardware-based security
- Two gigabit LAN ports, two serial ports and three USB 3.0 ports
- Two DDR4 SODIMM slots supporting up to 32 GB of memory
- Hazardous location approvals: UL Class I Division 2, ATEX Zone 2 and IECEx Zone 2
- Moxa Proactive Monitoring utility with relay and SNMP trap alerts
- Built-in RTC with lithium battery backup
- Optional Linux Debian 9 or Windows 10 Enterprise LTSC 1809 via CTOS

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-7600U (4M Cache, up to 3.90 GHz)
- Graphics: Intel HD Graphics 620
- Memory: 8 GB, 2 x SODIMM DDR4 slots, up to 32 GB
- Storage: 1 x mSATA (SATA 3.0, internal mini-PCIe socket), 1 x 2.5" HDD/SSD slot
- Security: built-in TPM 2.0
- LAN: 2 x 10/100/1000BaseT(X) RJ45, 1.5 kV magnetic isolation protection
- Serial: 2 x RS-232/422/485 (software selectable), DB9 male, 50 bps to 115.2 kbps, 4 kV contact / 8 kV air ESD protection
- USB: 3 x USB 3.0 Type-A
- Video: 1 x HDMI, up to 3840 x 2160 at 30 Hz
- Expansion: 3 x mini-PCIe sockets
- Input voltage: 9 to 36 VDC
- Power consumption: 72 W
- Operating temperature: -40 to 70°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% (non-condensing)
- Dimensions: 134 x 60.4 x 120 mm
- Weight: 1.40 kg
- Mounting: DIN-rail (kit included), wall mounting with optional kit
- Hazardous locations: ATEX Zone 2, IECEx Zone 2, Class I Division 2
- MTBF: 510,913 hrs

FAQs

Q: What operating temperature range does the MC-1220-KL7-T-S support?
A: This model operates from -40 to 70°C (-40 to 158°F) and tolerates storage temperatures of -40 to 75°C, suiting outdoor cabinets and unconditioned industrial sites.

Q: What processor and memory does this model include?
A: It uses an Intel Core i7-7600U processor (up to 3.90 GHz) with 8 GB of memory. The two SODIMM DDR4 slots support up to 32 GB in total.

Q: Can I add wireless or cellular connectivity?
A: Yes. The three mini-PCIe sockets accept Wi-Fi, 3G, LTE, GPS and mSATA expansion modules.

Q: Which operating systems are supported?
A: Linux Debian 9 (64-bit, kernel 4.9) and Windows 10 Enterprise LTSC 1809 (64-bit) are available as optional pre-installed images through Moxa's CTOS service.

Q: How is the MC-1220-KL7-T-S powered and mounted?
A: It runs from a 9 to 36 VDC input and includes a DIN-rail mounting kit. Wall mounting is possible with an optional kit.

Q: Is it suitable for hazardous locations?
A: It carries ATEX Zone 2, IECEx Zone 2 and Class I Division 2 approvals, making it suitable for qualifying hazardous location installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
