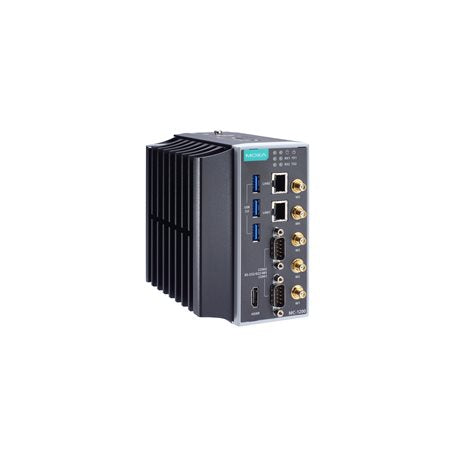

Moxa MC-1220-KL5-T-S | MC-1200 Fanless Embedded Computer, Core i5-7300U, 8GB, -40 to 70C

Authorised Moxa Partner

SKU:MC-1220-KL5-T-S

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MC-1200 fanless embedded computer is a compact x86 industrial PC built around an Intel Core i5-7300U processor with 8 GB of DDR4 memory. This variant is rated for a -40 to 70°C operating range, making it suited to outdoor cabinets, transport, energy and factory automation deployments where a fan-based system would fail.

Connectivity includes 2 Gigabit Ethernet ports, 2 software-selectable RS-232/422/485 serial ports, 3 USB 3.0 hosts and HDMI output up to 3840 x 2160 at 30 Hz. Three Mini PCIe slots, an mSATA slot and two SODIMM DDR4 slots (up to 32 GB) allow expansion. It runs from a wide 9 to 36 VDC input, mounts on a DIN rail, and carries ATEX Zone 2, IECEx Zone 2 and Class I Division 2 hazardous location approvals.

Features

- Fanless, compact metal housing for harsh industrial environments
- Wide -40 to 70°C operating temperature range
- Wide 9 to 36 VDC power input
- Hazardous location approvals: ATEX Zone 2, IECEx Zone 2, Class I Division 2
- DIN-rail mounting, with wall mounting via optional kit
- Software-selectable RS-232/422/485 serial ports
- TPM 2.0 support
- Optional Linux Debian 9 or Windows 10 Enterprise LTSC via CTOS
- Built-in RTC with lithium battery backup

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i5-7300U, 2 cores / 4 threads, 2.6 GHz (up to 3.50 GHz), 3M cache
- Memory: 8 GB DDR4, 2 x SODIMM slots, up to 32 GB
- Graphics: Intel HD Graphics 620
- Storage: 1 x mSATA slot (SATA 3.0)
- Ethernet: 2 x 10/100/1000BaseT(X) RJ45 ports, 1.5 kV magnetic isolation
- Serial: 2 x RS-232/422/485 (software selectable), DB9 male, 50 bps to 115.2 kbps
- USB: 3 x USB 3.0 type-A hosts
- Video: 1 x HDMI, up to 3840 x 2160 at 30 Hz
- Expansion: 3 x Mini PCIe slots
- Security: TPM 2.0
- Power input: 9 to 36 VDC, 72 W consumption
- Operating temperature: -40 to 70°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Dimensions: 134 x 60.4 x 120 mm
- Weight: 1.40 kg
- Housing: metal, fanless
- Mounting: DIN-rail, wall mount with optional kit
- Approvals: ATEX Zone 2, IECEx Zone 2, Class I Division 2, FCC Part 15B Class A, RoHS, WEEE
- MTBF: 510,913 hrs

FAQs

Q: What operating temperature range does the MC-1220-KL5-T-S support?
A: It is rated for -40 to 70°C, and its fanless design suits unconditioned cabinets and outdoor enclosures.

Q: Can I expand the memory and storage?
A: Yes. It has 2 x SODIMM DDR4 slots supporting up to 32 GB, an mSATA slot for storage and 3 Mini PCIe slots for expansion.

Q: What serial interfaces are provided?
A: There are 2 x DB9 male serial ports, each software selectable between RS-232, RS-422 and RS-485.

Q: What power supply does it require?
A: It accepts a 9 to 36 VDC input. Power consumption is up to 72 W.

Q: Which operating systems are supported?
A: Linux Debian 9 (64-bit, kernel 4.9) and Windows 10 Enterprise LTSC 1809 (64-bit) are available as optional preinstalled images via CTOS.

Q: Is it approved for hazardous locations?
A: Yes. It carries ATEX Zone 2, IECEx Zone 2 and Class I Division 2 approvals.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
