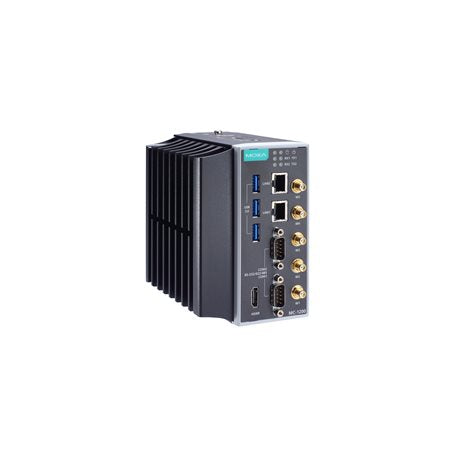

Moxa MC-1220-KL5-T | MC-1200 Industrial Computer, Core i5-7300U, 8GB, -40 to 70C

Authorised Moxa Partner

SKU:MC-1220-KL5-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MC-1220-KL5-T is a compact, fanless DIN-rail industrial x86 computer from the Moxa MC-1200 Series, built on an Intel Core i5-7300U processor (2C/4T, 2.6 GHz, up to 3.50 GHz) with 8 GB RAM. This wide-temperature variant operates from -40 to 70°C on a 9 to 36 VDC input, making it well suited to harsh factory floor, transport and remote cabinet deployments.

It combines dual Gigabit Ethernet, two software-selectable RS-232/422/485 serial ports, HDMI output up to 3840 x 2160 at 30 Hz and three USB 3.0 ports for connecting legacy equipment alongside modern peripherals. Three Mini PCIe slots (one for mSATA storage, two for wireless modules) allow expansion, and the unit supports optional Linux Debian 9 or Windows 10 Enterprise LTSC 1809 images via CTOS.

Features

- Fanless, wide-temperature design for -40 to 70°C operation
- Wide 9 to 36 VDC power input
- Two software-selectable RS-232/422/485 serial ports for legacy device connectivity
- Dual Gigabit Ethernet ports with 1.5 kV magnetic isolation
- Three Mini PCIe expansion slots for mSATA storage and wireless modules
- DIN-rail or wall mounting
- Hazardous location approvals: ATEX Zone 2, IECEx Zone 2, Class I Division 2
- Optional Linux Debian 9 or Windows 10 Enterprise LTSC via CTOS
- Built-in RTC with lithium battery backup

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i5-7300U, 2C/4T, 2.6 GHz (up to 3.50 GHz), 3M cache
- Graphics: Intel HD Graphics 620
- Memory: 8 GB RAM, 2 x SODIMM DDR4 slots, up to 32 GB maximum
- Storage slot: 1 x mSATA (SATA 3.0, internal Mini PCIe socket)
- Ethernet: 2 x 10/100/1000BaseT(X) RJ45 with 1.5 kV magnetic isolation
- Serial: 2 x RS-232/422/485 (software selectable), DB9 male, 50 bps to 115.2 kbps
- Video: 1 x HDMI, up to 3840 x 2160 at 30 Hz
- USB: 3 x USB 3.0 Type-A
- Expansion: 3 x Mini PCIe slots (1 for mSATA, 2 for wireless modules)
- Power input: 9 to 36 VDC, 8 A at 9 VDC, 2 A at 36 VDC, 72 W
- Operating temperature: -40 to 70°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Mounting: DIN-rail, or wall mount with optional kit
- Dimensions: 134 x 60.4 x 120 mm, 1.40 kg, metal housing
- Hazardous locations: ATEX Zone 2, IECEx Zone 2, Class I Division 2
- MTBF: 510,913 hours

FAQs

Q: What operating temperature range does the MC-1220-KL5-T support?
A: It operates from -40 to 70°C, which is the wide-temperature variant of the MC-1200 Series, suitable for unconditioned cabinets and outdoor enclosures.

Q: What power input does it require?
A: It runs from a 9 to 36 VDC input. Input current is 8 A at 9 VDC or 2 A at 36 VDC, with a power consumption of 72 W.

Q: Which serial interfaces are available?
A: There are two DB9 male serial ports, each software selectable between RS-232, RS-422 and RS-485, with RTS/CTS and XON/XOFF flow control.

Q: Can the memory and storage be expanded?
A: Yes. It has two SODIMM DDR4 slots supporting up to 32 GB, and one Mini PCIe slot for mSATA storage. Two further Mini PCIe slots accept wireless modules.

Q: Which operating systems are supported?
A: Linux Debian 9 64-bit (kernel 4.9) and Windows 10 Enterprise LTSC 1809 64-bit are available as optional images via CTOS.

Q: How is it mounted?
A: It supports DIN-rail mounting as standard, or wall mounting using an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
