Moxa MC-1220-KL1-T-S | MC-1200 Fanless Embedded Computer, Celeron 3965U, 8GB, TPM 2.0, -40 to 70°C

Authorised Moxa Partner

SKU:MC-1220-KL1-T-S

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

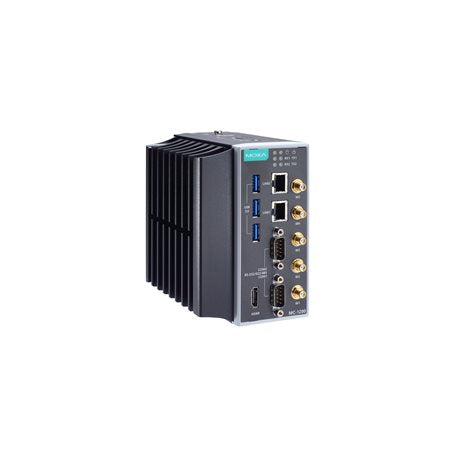

The Moxa MC-1220-KL1-T-S is an ultra-compact, fanless x86 embedded computer built around an Intel Celeron 3965U processor, 8 GB of RAM and TPM 2.0 hardware security. It operates across a wide -40 to 70°C temperature range and is rated for industrial and hazardous-location deployments, including UL C1D2, ATEX and IECEx Zone 2.

With dual Gigabit Ethernet, two RS-232/422/485 serial ports, three USB 3.0 ports and an HDMI output, it suits edge computing, machine connectivity and data acquisition applications. Three mPCIe slots provide room for mSATA storage and wireless modules, and the 9 to 36 VDC power input and DIN-rail mounting simplify installation in control cabinets.

Features

- Fanless design for reliable operation from -40 to 70°C
- TPM 2.0 for hardware-based security
- Three mPCIe slots for storage and wireless expansion
- UL C1D2, ATEX and IECEx Zone 2 rated for hazardous locations
- 9 to 36 VDC wide-range power input
- DIN-rail mounting for control cabinet installation
- Dual Gigabit LAN and dual RS-232/422/485 serial ports for mixed IT and OT connectivity

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Celeron 3965U, 2 cores / 2 threads, 2.2 GHz
- Memory: 8 GB
- Security: TPM 2.0
- LAN: 2 x 10/100/1000Base-TX Ethernet
- Serial: 2 x RS-232/422/485
- USB: 3 x USB 3.0
- Video output: 1 x HDMI
- Expansion: 3 x mPCIe (1 for mSATA, 2 for wireless modules)
- Storage: 1 SSD/HDD slot, optional 16 GB mSATA OS storage
- Power input: 9 to 36 VDC
- Mounting: DIN-rail
- Operating temperature: -40 to 70°C
- Hazardous location ratings: UL C1D2, ATEX, IECEx Zone 2

FAQs

Q: What operating temperature range does the MC-1220-KL1-T-S support?
A: It operates from -40 to 70°C thanks to its fanless design, making it suitable for harsh industrial environments.

Q: Is this computer suitable for hazardous locations?
A: Yes. The MC-1200 series is rated for UL C1D2, ATEX and IECEx Zone 2 hazardous locations.

Q: What expansion options are available?
A: It has three mPCIe slots, one intended for mSATA storage and two for wireless modules, plus three USB 3.0 ports and an HDMI output.

Q: What power input does it require?
A: It accepts a wide 9 to 36 VDC input.

Q: Does it include hardware security?
A: Yes, this model includes TPM 2.0 for hardware-based security.

Q: What serial and network interfaces does it provide?
A: It provides two 10/100/1000 Mbps Ethernet ports and two software-selectable RS-232/422/485 serial ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
