Description

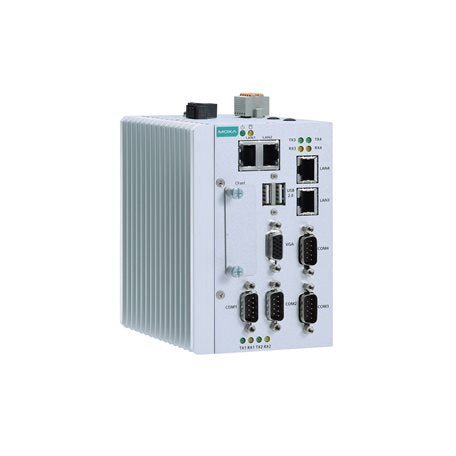

The MC-1122-E4-TPM-T is a fanless, DIN-rail mountable x86 embedded computer built on the quad-core Intel Atom E3845 processor, supplied with 4 GB DDR3L RAM and a pre-installed TPM 1.2 module. It combines 4 Gigabit LAN ports, 4 software-selectable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs, making it well suited to industrial automation, data acquisition and protocol gateway deployments.

Storage is provided by a CFast slot, while a VGA output and 2 USB 2.0 hosts support local setup and peripherals. An mPCIe expansion slot with a SIM slot allows Wi-Fi, 3G or LTE modules to be added. The unit accepts 12 to 36 VDC power input and operates from -40 to 70°C. It runs Windows 10 IoT Enterprise LTSC 2021 or Linux Debian 9.

Features

- Fanless, DIN-rail mountable design for reliable industrial deployment
- Quad-core Intel Atom E3800 series processor for responsive edge computing
- Wide -40 to 70°C operating temperature range
- Marine-grade and ATEX / IECEx Zone 2 compliance
- mPCIe and SIM slot support Wi-Fi, 3G and LTE wireless modules
- Pre-installed TPM 1.2 module for hardware-based security
- 4 Gigabit LANs, 4 serial ports and 4 DI / 4 DO for versatile connectivity

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Atom E3845 quad-core processor (2M cache, 1.91 GHz) with Intel HD Graphics
- 4 GB DDR3L RAM pre-installed, 1 x SODIMM DDR3/DDR3L slot
- 4 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 4 x RS-232/422/485 serial ports, software-selectable (DB9 male)
- 4 x digital inputs, 4 x digital outputs
- 2 x USB 2.0 hosts (type-A)
- 1 x VGA output (15-pin D-sub, female)
- 1 x CFast slot for storage
- 1 x mPCIe expansion slot, 1 x mini SIM slot
- TPM v1.2 pre-installed
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Linux Debian 9 (kernel v4.9)
- Input voltage: 12 to 36 VDC
- Operating temperature: -40 to 70°C
- Dimensions (W x D x H): 132 x 122 x 87 mm
- Weight: 1,340 g

FAQs

Q: What operating systems does the MC-1122-E4-TPM-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 9 with kernel v4.9.

Q: Can I add wireless connectivity to this computer?
A: Yes. The mPCIe expansion slot and the mini SIM slot allow Wi-Fi, 3G or LTE modules to be installed.

Q: What storage does it use?
A: It has a CFast slot for storage. The unit also includes 4 GB DDR3L RAM pre-installed and one SODIMM slot.

Q: What serial interfaces are available?
A: There are 4 software-selectable RS-232/422/485 serial ports on DB9 male connectors, with ADDC support for RS-485.

Q: What is the power requirement and operating temperature?
A: It accepts 12 to 36 VDC input and operates across a -40 to 70°C temperature range.

Q: What does the TPM in the model name mean?
A: The TPM variant ships with a TPM v1.2 module pre-installed for hardware-based security.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
