Description

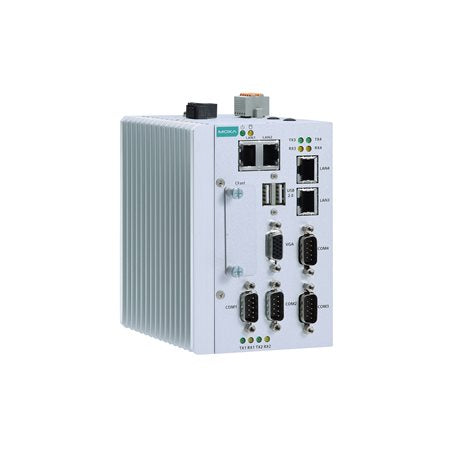

The Moxa MC-1122-E4-T is a DIN-rail mountable, fanless x86 embedded computer built on a quad-core Intel Atom E3845 processor with 4 GB of DDR3L RAM pre-installed. It combines 4 Gigabit LAN ports, 4 software-selectable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs, making it well suited to industrial automation, protocol gateway and data acquisition deployments in harsh environments.

This variant has no TPM and operates across a wide -40 to 70°C range with a 12 to 36 VDC isolated power input. A CFast slot, a spare SODIMM slot and a Mini PCIe socket allow storage and wireless expansion, while VGA and USB 2.0 ports support local setup. It runs Windows 10 IoT Enterprise LTSC 2021 or Linux Debian 9 and carries marine-grade and ATEX / IECEx Zone 2 compliance.

Features

- Intel Atom E3800 series quad-core processor
- Fanless, DIN-rail mountable design
- 12 to 36 VDC wide-range isolated power input
- 40 to 70°C system operating temperature range
- Marine-grade and ATEX / IECEx Zone 2 compliance
- Mini PCIe socket supports wireless modules (Wi-Fi, 3G, LTE, GPS)
- 4 Gigabit LANs, 4 serial ports, 4 DIs and 4 DOs for connectivity

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom E3845 quad-core, 1.91 GHz, 2M cache
- Graphics: Intel HD Graphics
- Memory: 4 GB DDR3L pre-installed, 1 x SODIMM DDR3/DDR3L slot
- Storage: 1 x CFast slot
- Ethernet: 4 x 10/100/1000 Mbps auto-sensing (RJ45)
- Serial: 4 x RS-232/422/485 software-selectable (DB9 male), 50 bps to 115.2 kbps
- USB: 2 x USB 2.0 host (Type-A)
- Digital I/O: 4 DIs, 4 DOs
- Video: 1 x VGA (15-pin D-sub female)
- Expansion: 1 x Mini PCIe slot, 1 x uSIM slot (Mini SIM)
- Power input: 12 to 36 VDC
- Operating temperature: -40 to 70°C
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Linux Debian 9 (kernel v4.9)
- Dimensions: 132 x 122 x 87 mm
- Weight: 1,340 g
- Housing: Metal, DIN-rail or wall mounting (optional kit)

FAQs

Q: What processor and memory does the MC-1122-E4-T use?
A: It uses a quad-core Intel Atom E3845 processor running at 1.91 GHz with 4 GB of DDR3L RAM pre-installed. There is also one SODIMM DDR3/DDR3L slot.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 9 (kernel v4.9) are supported.

Q: What temperature range can it operate in?
A: The system operates from -40 to 70°C, and its fanless design suits harsh industrial environments.

Q: Can I add wireless connectivity?
A: Yes. The Mini PCIe socket supports wireless modules such as Wi-Fi, 3G, LTE and GPS, and a uSIM slot is provided for cellular use.

Q: How is the serial port interface configured?
A: The 4 DB9 male serial ports are software-selectable between RS-232, RS-422 and RS-485, with baud rates from 50 bps to 115.2 kbps.

Q: What power input does it need?
A: It accepts a wide-range 12 to 36 VDC isolated power input, which suits industrial and marine power systems.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
