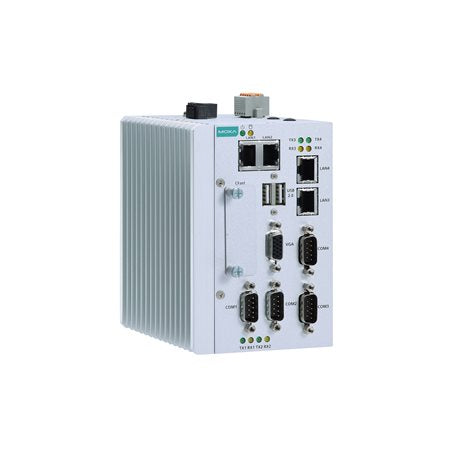

Moxa MC-1122-E2-T | MC-1100 Fanless DIN-Rail Embedded Computer, Atom E3826, 4GB, 4x, 4x GbE

Authorised Moxa Partner

SKU:MC-1122-E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MC-1122-E2-T is a fanless, DIN-rail x86 embedded computer from the MC-1100 series, built on a dual-core Intel Atom E3826 processor (1.46 GHz) with 4 GB of pre-installed DDR3L memory. It combines 4 Gigabit Ethernet ports, 4 software-selectable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs, making it well suited to industrial automation, data acquisition and protocol gateway deployments. The -T variant is rated for -40 to 70°C operation.

Expansion and storage are handled by a CFast slot, a mini PCIe slot and a Mini SIM slot for cellular or wireless connectivity, alongside VGA output and 2 USB 2.0 ports. It accepts a wide DC input and runs Windows 10 IoT Enterprise LTSC 2021 or Linux Debian 9. Hazardous location (ATEX/IECEx Zone 2, Class I Division 2) and maritime (DNV, LR, IEC 60945) certifications support deployment in demanding environments.

Features

- Fanless, compact DIN-rail design with metal housing
- Wide operating temperature range of -40 to 70°C
- Hazardous location certifications (ATEX/IECEx Zone 2, Class I Division 2)
- Maritime certifications (DNV, LR, IEC 60945)
- Built-in watchdog timer for automatic reboot
- Software-selectable RS-232/422/485 serial ports
- Mini PCIe and Mini SIM slot for cellular or wireless expansion
- Supports Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 9

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Atom E3826 dual-core, 1.46 GHz, 1M cache
- Graphics: Intel HD Graphics
- Memory: 4 GB DDR3L pre-installed, 1 x SODIMM DDR3/DDR3L slot
- Ethernet: 4 x 10/100/1000 Mbps (RJ45)
- Serial: 4 x RS-232/422/485, software-selectable (DB9 male), 50 bps to 115.2 kbps
- Digital I/O: 4 x DI, 4 x DO
- USB: 2 x USB 2.0 hosts (type-A)
- Video: 1 x VGA (15-pin D-sub female)
- Storage: 1 x CFast slot
- Expansion: 1 x mPCIe slot, 1 x Mini SIM slot
- Input voltage: 11.4 to 36 VDC, terminal block connector
- Power consumption: 30 W max.
- Operating temperature: -40 to 70°C
- Dimensions: 132 x 122 x 87 mm
- Weight: 1,340 g
- Mounting: DIN-rail, wall mounting with optional kit
- Operating system support: Windows 10 IoT Enterprise LTSC 2021, Linux Debian 9 (kernel v4.9)
- Certifications: ATEX Zone 2, IECEx Zone 2, Class I Division 2, DNV, LR, IEC 60945, FCC, UL 60950-1

FAQs

Q: What operating systems does the MC-1122-E2-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 9 (kernel v4.9).

Q: Can the MC-1122-E2-T be used for cellular connectivity?
A: Yes. It has a mini PCIe slot and a Mini SIM slot, allowing a compatible cellular or wireless module to be fitted.

Q: What temperature range does this model support?
A: The -T variant operates from -40 to 70°C, and it is fanless, so there are no moving parts to fail in harsh environments.

Q: How many serial and digital I/O ports are included?
A: It provides 4 software-selectable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs.

Q: How is the MC-1122-E2-T mounted?
A: It is designed for DIN-rail mounting, and wall mounting is possible with the optional mounting kit.

Q: What power input does it require?
A: It runs from a DC supply of 11.4 to 36 VDC via a terminal block connector, with a maximum consumption of 30 W.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
