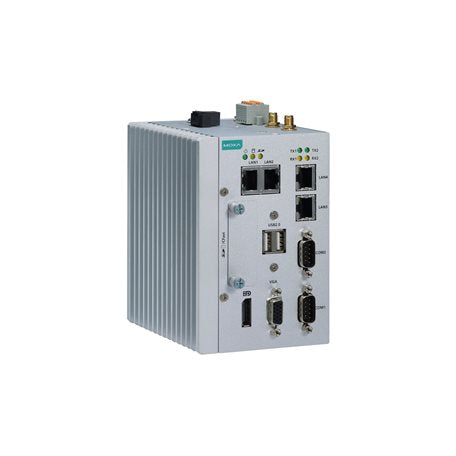

Moxa MC-1121-E4-T-W7E | MC-1100 Embedded Computer, Atom E3845, 4GB, 4 GbE, 32GB, W7E

Authorised Moxa Partner

SKU:MC-1121-E4-T-W7E

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MC-1100 fanless DIN-rail embedded computer pairs an Intel Atom E3845 quad-core processor with 4 GB DDR3L RAM, four Gigabit LAN ports and a pre-installed 32 GB CFast card. This W7E model ships with Windows Embedded Standard 7 and operates from -40 to 70°C, making it well suited to industrial automation, transport and harsh-environment data acquisition deployments.

Two software-selectable RS-232/422/485 serial ports, 4 digital inputs, 4 digital outputs, VGA and DisplayPort dual display output and a mini PCIe slot for Wi-Fi, cellular or GPS modules give flexible connectivity. The metal housing, wide 11.4 to 36 VDC input and ATEX Zone 2, IECEx Zone 2 and maritime approvals support demanding field installations.

Features

- Fanless, DIN-rail mountable x86 design
- Wide -40 to 70°C operating temperature range
- Wide-range isolated 11.4 to 36 VDC power input
- Four Gigabit LAN ports for segmented or redundant networking
- Mini PCIe slot for Wi-Fi, cellular or GPS modules
- Dual independent displays via VGA and DisplayPort
- Built-in watchdog timer for automatic reboot
- Marine-grade, ATEX and IECEx Zone 2 compliance
- Microsoft Azure Certified for IoT (MC-1100 Series)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom E3845 quad-core, 1.91 GHz, 2M cache
- Graphics: Intel HD Graphics
- Memory: 4 GB DDR3L pre-installed, 1 x SODIMM DDR3/DDR3L slot
- Storage: 32 GB CFast pre-installed, 1 x CFast slot, 1 x SD slot
- Operating system: Windows Embedded Standard 7 (W7E) preinstalled
- Ethernet: 4 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485 (DB9 male), 50 bps to 115.2 kbps
- USB: 2 x USB 2.0 hosts, type-A
- Digital I/O: 4 x DI, 4 x DO
- Video output: 1 x DisplayPort, 1 x VGA (15-pin D-sub female)
- Expansion: 1 x mini PCIe slot
- Input voltage: 11.4 to 36 VDC, terminal block
- Power consumption: 30 W maximum
- Operating temperature: -40 to 70°C
- Dimensions: 132 x 122 x 87 mm
- Weight: 1,340 g
- Mounting: DIN-rail, wall mount with optional kit
- Approvals: ATEX Zone 2, IECEx Zone 2, Class I Division 2, DNV, IEC 60945, LR, UL 60950-1

FAQs

Q: What operating system does the MC-1121-E4-T-W7E ship with?
A: It ships with Windows Embedded Standard 7 (W7E) preinstalled on the 32 GB CFast card.

Q: Can I add wireless connectivity to this computer?
A: Yes. The mini PCIe slot supports Wi-Fi, cellular or GPS modules, and there is one SIM slot (Mini SIM format).

Q: What power input does it require?
A: It accepts 11.4 to 36 VDC via a terminal block, with a maximum power consumption of 30 W.

Q: Is it suitable for hazardous or marine environments?
A: It carries ATEX Zone 2, IECEx Zone 2 and Class I Division 2 approvals, along with DNV, IEC 60945 and LR maritime certifications.

Q: How is the MC-1121-E4-T-W7E mounted?
A: It mounts on a DIN rail as standard, and can be wall mounted with an optional mounting kit.

Q: How many serial and I/O ports does it provide?
A: It has two software-selectable RS-232/422/485 DB9 serial ports, four digital inputs, four digital outputs and two USB 2.0 host ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
