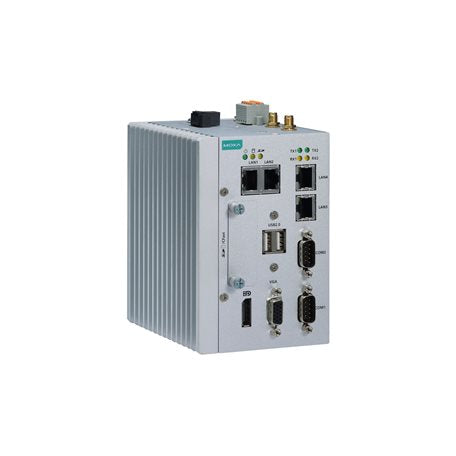

Moxa MC-1121-E2-T | MC-1100 Embedded Computer, Atom E3826, 4GB, 4x GbE

Authorised Moxa Partner

SKU:MC-1121-E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MC-1100 Embedded Computer with a dual-core Intel Atom E3826 processor, 4 GB DDR3L RAM and 4 x Gigabit Ethernet ports is a fanless, DIN-rail x86 platform for industrial automation and edge applications. This model also provides 4 digital inputs and 4 digital outputs, 2 software-selectable RS-232/422/485 serial ports and a wide 11.4 to 36 VDC input, with an extended operating range of -40 to 70°C.

Storage and expansion are covered by a CFast slot, an SD slot, a Mini PCIe slot and a Mini SIM slot for wireless or cellular modules. Video output is provided over VGA and DisplayPort, the metal housing mounts on a DIN rail or a wall (with optional kit), and approvals include ATEX Zone 2, IECEx Zone 2, Class I Division 2 and maritime certifications (DNV, IEC 60945, LR). It supports Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 9.

Features

- Fanless, wide-temperature design rated -40 to 70°C
- Hazardous location approvals (ATEX Zone 2, IECEx Zone 2, Class I Div. 2)
- Maritime certifications (DNV, IEC 60945, LR)
- 4 Gigabit LAN ports for network segmentation or redundancy
- Mini PCIe expansion slot and Mini SIM slot for wireless or cellular modules
- Built-in watchdog timer for automatic reboot
- DIN-rail or wall mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Atom E3826 dual-core processor, 1.46 GHz (1M cache)
- Intel HD Graphics
- 4 GB DDR3L pre-installed RAM, 1 x SODIMM DDR3/DDR3L slot
- 4 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x RS-232/422/485 serial ports (DB9 male), software-selectable
- 2 x USB 2.0 hosts (type-A)
- 1 x VGA (15-pin D-sub female), 1 x DisplayPort
- 4 x digital inputs, 4 x digital outputs
- 1 x CFast slot, 1 x SD slot, 1 x mPCIe slot, 1 x Mini SIM slot
- Input voltage 11.4 to 36 VDC via terminal block, 30 W max
- Operating temperature -40 to 70°C, 5 to 95% non-condensing humidity
- Metal housing, 132 x 122 x 87 mm, 1,340 g
- DIN-rail mounting, wall mounting with optional kit
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Linux Debian 9 (kernel v4.9)

FAQs

Q: What processor and memory does the MC-1121-E2-T have?
A: It uses a dual-core Intel Atom E3826 processor at 1.46 GHz with 4 GB of pre-installed DDR3L RAM. There is one SODIMM DDR3/DDR3L slot.

Q: Which operating systems are supported?
A: The MC-1100 series supports Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 9 (kernel v4.9).

Q: What power input does it require?
A: It accepts 11.4 to 36 VDC through a terminal block, with a maximum power consumption of 30 W.

Q: Can it be expanded with wireless or cellular connectivity?
A: Yes. It has one Mini PCIe slot and one Mini SIM slot, which can be used for wireless or cellular modules.

Q: What I/O does this model provide?
A: It has 4 x Gigabit Ethernet ports, 2 x RS-232/422/485 serial ports, 2 x USB 2.0 hosts, 4 digital inputs and 4 digital outputs, plus VGA and DisplayPort video outputs.

Q: How is it mounted and what temperatures can it handle?
A: It mounts on a DIN rail, or on a wall with an optional kit. The fanless metal housing is rated for operation from -40 to 70°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
