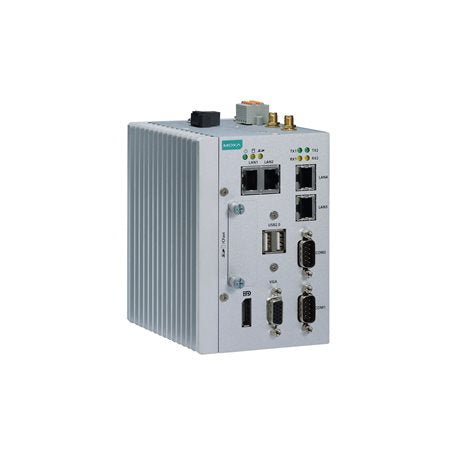

Moxa MC-1112-E4-T | MC-1100 Fanless Embedded Computer, Atom E3845, 4GB, 2x GbE

Authorised Moxa Partner

SKU:MC-1112-E4-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MC-1100 Series MC-1112-E4-T is a fanless, DIN-rail mountable x86 embedded computer built around a quad-core Intel Atom E3845 processor with 4 GB of pre-installed DDR3L memory. It provides two Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports and a VGA output, with a CFast slot for storage and no mPCIe expansion. It is designed for industrial automation, data acquisition and protocol gateway deployments where reliability matters.

The metal housing operates across a -40 to 70°C temperature range on a 12 to 36 VDC power input, and the unit carries hazardous location certifications (ATEX/IECEx Zone 2, Class I Division 2) and maritime approvals (DNV, LR, IEC 60945). It supports Windows 10 IoT Enterprise LTSC 2021 and Debian 9 Linux, with a built-in watchdog timer for automatic recovery.

Features

- Quad-core Intel Atom E3845 processor for demanding industrial workloads
- Fanless, DIN-rail mountable metal housing
- Wide -40 to 70°C operating temperature range
- Hazardous location certifications (ATEX/IECEx Zone 2, Class I Div 2)
- Maritime certifications (DNV, LR, IEC 60945)
- Two Gigabit Ethernet and two software-selectable serial ports
- Built-in watchdog timer for automatic reboot
- CFast slot for reliable solid-state storage

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom E3845 quad-core, 2M cache, 1.91 GHz
- Graphics: Intel HD Graphics
- Memory: 4 GB DDR3L pre-installed, 1 x SODIMM DDR3/DDR3L slot
- Storage: 1 x CFast slot
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software selectable (DB9 male), 50 bps to 115.2 kbps
- USB: 2 x USB 2.0 type-A
- Video: 1 x VGA (15-pin D-sub female)
- Power input: 12 to 36 VDC via terminal block
- Power consumption: 30 W maximum
- Operating temperature: -40 to 70°C
- Dimensions: 132 x 122 x 68 mm
- Weight: 1,022 g
- Mounting: DIN-rail, wall mounting with optional kit
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Linux Debian 9 (kernel v4.9)
- Certifications: ATEX Zone 2, IECEx Zone 2, Class I Division 2, DNV, LR, IEC 60945, UL 60950-1

FAQs

Q: What operating systems does the MC-1112-E4-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 9 with kernel v4.9.

Q: Does this model include an mPCIe expansion slot?
A: No. The MC-1112-E4-T has no mPCIe slot. Storage is provided by a CFast slot.

Q: What power supply does it require?
A: It runs from a 12 to 36 VDC input through a terminal block connector, with a maximum consumption of 30 W.

Q: Can it be used in extreme temperatures?
A: Yes. It is rated for -40 to 70°C operation, making it suitable for harsh industrial environments.

Q: How can the MC-1112-E4-T be mounted?
A: It mounts on a DIN rail as standard, and wall mounting is available with an optional kit.

Q: What serial interfaces are provided?
A: Two DB9 male ports, each software selectable between RS-232, RS-422 and RS-485, supporting 50 bps to 115.2 kbps.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
