Moxa MC-1112-E2-T | MC-1100 Fanless DIN-Rail x86 Computer, Atom E3826, 4GB, -40 to 70C

Authorised Moxa Partner

SKU:MC-1112-E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

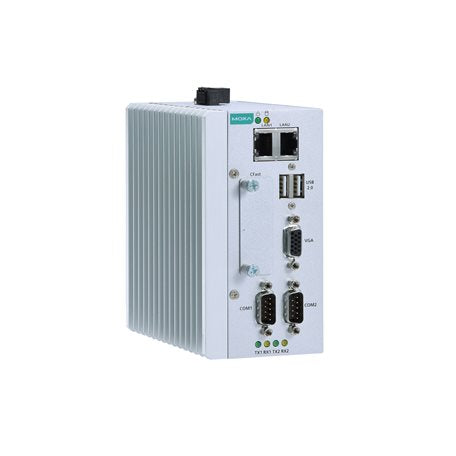

The Moxa MC-1112-E2-T is a fanless, DIN-rail x86 embedded computer built on a dual-core Intel Atom E3826 processor with 4 GB of pre-installed DDR3L memory. It combines 2 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 2 USB 2.0 hosts and VGA output, with a CFast slot for storage. The -T variant operates from -40 to 70°C, making it suited to harsh industrial and field deployments.

The compact metal housing mounts on a DIN rail, with wall mounting available using an optional kit. A built-in watchdog timer reboots the system automatically, and the unit accepts a wide DC input. It supports Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 9, and carries hazardous location (ATEX/IECEx Zone 2, Class I Div 2) and maritime (DNV, LR) approvals.

Features

- Fanless, compact x86 design for harsh industrial environments
- Wide operating temperature range of -40 to 70°C
- Dual Gigabit Ethernet ports
- Two software-selectable RS-232/422/485 serial ports
- Built-in watchdog timer (WDT) for automatic reboot
- DIN-rail mounting, with wall mounting available via an optional kit
- Supports Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 9
- Hazardous location (ATEX/IECEx Zone 2, Class I Div 2) and maritime (DNV, LR) approvals

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom E3826 dual-core, 1.46 GHz, 1M cache
- Graphics: Intel HD Graphics
- Memory: 4 GB DDR3L pre-installed, 1 x SODIMM DDR3/DDR3L slot
- Storage: 1 x CFast slot
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- USB: 2 x USB 2.0 hosts (Type-A)
- Video: 1 x VGA (15-pin D-sub, female)
- Serial: 2 x RS-232/422/485 (DB9 male), 50 bps to 115.2 kbps
- Input voltage: 11.4 to 36 VDC, terminal block connector
- Power consumption: 30 W maximum
- Operating temperature: -40 to 70°C
- Storage temperature: -45 to 75°C
- Humidity: 5 to 95% (non-condensing)
- Dimensions: 132 x 122 x 68 mm
- Weight: 1,022 g
- Housing: metal, DIN-rail mounting (wall mounting with optional kit)
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Linux Debian 9 (kernel v4.9)
- Certifications: ATEX Zone 2, IECEx Zone 2, Class I Division 2, DNV, LR, IEC 60945, UL 60950-1, FCC

FAQs

Q: What operating systems does the MC-1112-E2-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 9 (kernel v4.9).

Q: What operating temperature range does the -T model cover?
A: The MC-1112-E2-T operates from -40 to 70°C, and is fanless.

Q: How is storage provided on this computer?
A: It has one CFast slot for storage. The 4 GB of DDR3L memory is pre-installed, with one SODIMM DDR3/DDR3L slot.

Q: What serial interfaces are included?
A: Two DB9 male serial ports supporting RS-232, RS-422 and RS-485, with baud rates from 50 bps to 115.2 kbps.

Q: How is the MC-1112-E2-T mounted and powered?
A: It mounts on a DIN rail, or on a wall using an optional kit. It is powered from 11.4 to 36 VDC via a terminal block, with a maximum draw of 30 W.

Q: Is it approved for hazardous or maritime locations?
A: Yes. It carries ATEX Zone 2, IECEx Zone 2 and Class I Division 2 hazardous location approvals, plus maritime approvals including DNV and LR.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
