Moxa MC-1111-E4-T | MC-1100 Fanless Embedded Computer, Atom E3845, 4GB

Authorised Moxa Partner

SKU:MC-1111-E4-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

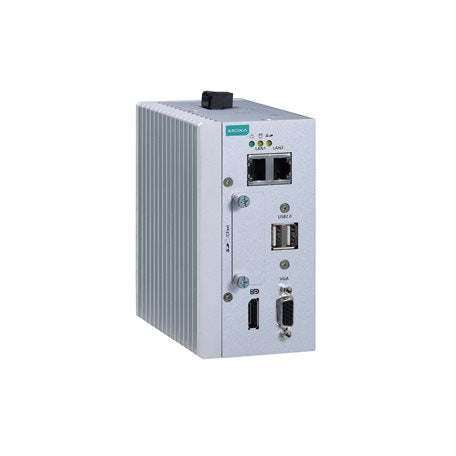

The MC-1111-E4-T is a fanless, DIN-rail mountable x86 embedded computer built on a quad-core Intel Atom E3845 processor with 4GB DDR3L pre-installed. It provides 2 x Gigabit Ethernet ports, dual independent video outputs (VGA and DisplayPort), and CFast plus SD storage slots, with no serial, digital input or digital output ports. A -40 to 70°C operating range makes it suited to marine, oil and gas, and transportation deployments.

Hazardous-location (ATEX Zone 2, IECEx Zone 2, Class I Division 2) and DNV-GL marine certifications support installation in critical environments. A 12 to 36 VDC wide-range power input, mini-PCIe expansion slot for Wi-Fi, LTE or GPS modules, and support for Linux Debian 8 and Windows Embedded operating systems give integrators flexibility for control, monitoring and edge computing applications.

Features

- Quad-core Intel Atom E3845 processor for demanding embedded workloads
- Fanless metal housing with -40 to 70°C operating range
- Dual independent displays via VGA and DisplayPort
- Dual storage with CFast and SD card slots
- Mini-PCIe socket for Wi-Fi, 3G, LTE and GPS modules
- Wide-range isolated 12 to 36 VDC power input
- ATEX / IECEx Zone 2 and DNV-GL marine certifications
- Supports Moxa Proactive Monitoring for I/O, temperature and power
- Microsoft Azure Certified for IoT
- DIN-rail kit included for quick installation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Atom E3845 quad-core, 1.91 GHz, 2M cache
- Graphics: Intel HD Graphics
- Memory: 4GB DDR3L pre-installed, 1 x SODIMM DDR3/DDR3L slot
- Storage: 1 x CFast slot, 1 x SD slot
- Ethernet: 2 x auto-sensing 10/100/1000 Mbps (RJ45)
- Video output: 1 x VGA (15-pin D-sub), 1 x DisplayPort
- USB: 2 x USB 2.0 hosts (Type-A)
- Expansion: 1 x mPCIe slot
- Input voltage: 11.4 to 36 VDC, terminal block connector
- Power consumption: 30 W maximum
- Watchdog timer: built-in WDT for automatic reboot
- Housing: metal, fanless
- Dimensions: 132 x 122 x 68 mm
- Weight: 1,022 g
- Mounting: DIN-rail, wall mount with optional kit
- Operating temperature: -40 to 70°C
- Storage temperature: -45 to 75°C
- Humidity: 5 to 95% non-condensing
- Certifications: ATEX Zone 2, IECEx Zone 2, Class I Division 2, DNV-GL, IEC 60945, UL 60950-1, FCC
- Supported OS: Linux Debian 8, Windows Embedded Standard 7 (64-bit), Windows 10 IoT Enterprise 2016 LTSB

FAQs

Q: Does the MC-1111-E4-T include serial, DI or DO ports?
A: No. This model has 2 x Gigabit Ethernet, 2 x USB 2.0, VGA and DisplayPort, but no serial, digital input or digital output ports.

Q: Which operating systems are supported?
A: It supports Linux Debian 8 (kernel v4.1), Windows Embedded Standard 7 (WS7E) 64-bit and Windows 10 IoT Enterprise 2016 LTSB.

Q: Can the memory be expanded?
A: It ships with 4GB DDR3L pre-installed and has one SODIMM DDR3/DDR3L slot.

Q: Can I add wireless connectivity?
A: Yes. The mini-PCIe slot accepts Wi-Fi, 3G, LTE and GPS modules.

Q: Is it suitable for hazardous or marine environments?
A: Yes. It carries ATEX Zone 2, IECEx Zone 2, Class I Division 2 and DNV-GL marine certifications, and operates from -40 to 70°C.

Q: How is it mounted and powered?
A: It mounts on a DIN-rail using the included kit, or on a wall with an optional kit. Power is supplied through a terminal block on a 12 to 36 VDC input.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
