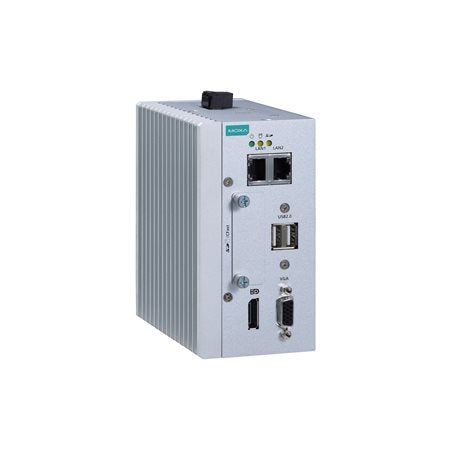

Moxa MC-1111-E2-T | MC-1100 Embedded Computer, Atom E3826, 4GB, 2x GbE

Authorised Moxa Partner

SKU:MC-1111-E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MC-1111-E2-T is a fanless, DIN-rail x86 embedded computer built on a dual-core Intel Atom E3826 processor (1.46 GHz) with 4 GB of pre-installed DDR3L RAM and two Gigabit Ethernet ports. It suits industrial automation, edge data acquisition and control applications, accepting a wide 11.4 to 36 VDC input and operating from -40 to 70°C in harsh environments.

Dual independent video outputs (VGA and DisplayPort), CFast and SD storage slots and two USB 2.0 host ports give flexible local I/O and storage. A built-in watchdog timer provides automatic reboot, and the unit supports Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 9. Hazardous location and maritime certifications extend deployment to ATEX/IECEx Zone 2, Class I Division 2 and shipboard installations.

Features

- Fanless, DIN-rail x86 design for industrial environments
- Dual-core Intel Atom E3826 with 4 GB DDR3L RAM
- Two Gigabit Ethernet ports for network segmentation or redundancy
- Dual independent displays via VGA and DisplayPort
- Dual storage with CFast and SD slots
- Wide -40 to 70°C operating temperature range
- Built-in watchdog timer (WDT) for automatic reboot
- Hazardous location certifications (ATEX/IECEx Zone 2, Class I Div 2)
- Maritime certifications (DNV, LR, IEC 60945)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom E3826 dual-core processor (1M cache, 1.46 GHz)
- Graphics: Intel HD Graphics
- Memory: 4 GB DDR3L pre-installed, 1 x SODIMM DDR3/DDR3L slot
- Storage slots: 1 x CFast, 1 x SD
- Ethernet: 2 x auto-sensing 10/100/1000 Mbps (RJ45)
- USB: 2 x USB 2.0 hosts (Type-A)
- Video output: 1 x VGA (15-pin D-sub female), 1 x DisplayPort
- Input voltage: 11.4 to 36 VDC, terminal block connector
- Power consumption: 30 W maximum
- Housing: metal, 132 x 122 x 68 mm, 1,022 g
- Mounting: DIN-rail, wall mounting with optional kit
- Operating temperature: -40 to 70°C, 5 to 95% non-condensing humidity
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Linux Debian 9 (kernel v4.9)
- Certifications: ATEX Zone 2, IECEx Zone 2, Class I Division 2, DNV, LR, IEC 60945, FCC, UL 60950-1

FAQs

Q: What operating systems does the MC-1111-E2-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021 and Linux Debian 9 (kernel v4.9).

Q: What power input does this model accept?
A: It accepts 11.4 to 36 VDC through a terminal block connector, with a maximum power consumption of 30 W.

Q: Can I connect two displays?
A: Yes. It provides one VGA output and one DisplayPort output for dual independent displays.

Q: What storage options are available?
A: It has one CFast slot and one SD slot. It also includes one SODIMM DDR3/DDR3L slot and 4 GB of RAM pre-installed.

Q: Is it suitable for hazardous or marine environments?
A: It carries ATEX Zone 2, IECEx Zone 2 and Class I Division 2 certifications, along with DNV, LR and IEC 60945 maritime approvals.

Q: How is the unit mounted?
A: It mounts directly on a DIN rail, and wall mounting is possible with the optional wall-mount kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
