Moxa ISD-1230-T | RS-422/485 Data Line Surge Protector, 20kV

Authorised Moxa Partner

SKU:ISD-1230-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ISD-1230-T is an industrial RS-422/485 data line surge protector that shields serial equipment such as terminals, instrumentation, I/O ports and hubs from transient surges. It delivers IEC 61643-21 C2 20 kV surge protection on 2-wire and 4-wire serial lines, supports baudrates from 50 bps to 921.6 kbps, and operates across a wide -40 to 85°C temperature range.

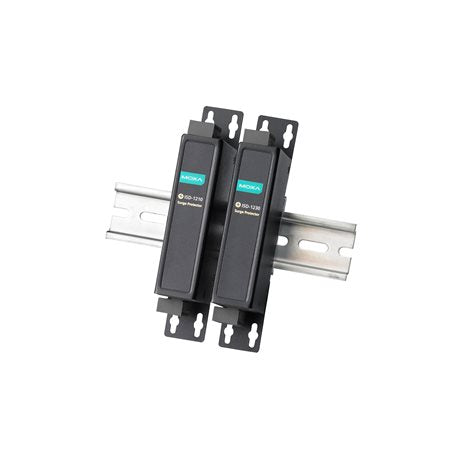

This RS-422/485 model is a plug-and-play, DIN-rail mounted unit in a compact IP30 metal housing with terminal block connections. Its RS-232 counterpart is the ISD-1210-T, so choose the ISD-1230-T when protecting RS-422 or RS-485 links in factory automation, process control and other harsh industrial environments.

Features

- Plug and play installation
- IEC 61643-21 C2 20 kV surge protection for serial data lines
- Supports RS-422 and RS-485 (2-wire and 4-wire) serial links
- Compact size for easy installation
- Wide-temperature design for -40 to 85°C environments
- Metal IP30 housing with DIN-rail mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standards: RS-422, RS-485 (2-wire and 4-wire)
- Surge protection: IEC 61643-21 C2, 20 kV
- Baudrate: 50 bps to 921.6 kbps
- Connector: Terminal block
- RS-422/RS-485-4w signals: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w signals: Data+, Data-, GND
- Housing: Metal, IP30
- Dimensions: 95 x 53 x 25 mm (3.74 x 2.01 x 0.98 in)
- Weight: 212 g (product only)
- Mounting: DIN-rail
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Safety: EN 60950-1, IEC 60950-1
- MTBF: 62,642,538 hrs (Telcordia/Bellcore, GB)

FAQs

Q: Which serial standards does the ISD-1230-T protect?
A: It protects RS-422 and RS-485 serial data lines, in both 2-wire and 4-wire configurations.

Q: What is the difference between the ISD-1230-T and the ISD-1210-T?
A: Both belong to the same series and share the same surge protection rating. The ISD-1230-T is for RS-422/485 lines, while the ISD-1210-T is for RS-232 lines.

Q: What level of surge protection does it provide?
A: It provides IEC 61643-21 C2 20 kV surge protection for the serial data lines.

Q: Can it be used in extreme temperatures?
A: Yes. It is a wide-temperature model rated for operation from -40 to 85°C.

Q: How is the ISD-1230-T mounted and connected?
A: It mounts on a DIN rail and connects to serial lines through a terminal block.

Q: What baudrates are supported?
A: It supports baudrates from 50 bps to 921.6 kbps.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
