Moxa ISD-1210-T | RS-232 Serial Surge Protector, 20 kV, DIN-Rail

Authorised Moxa Partner

SKU:ISD-1210-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ISD-1210-T is a DIN-rail mounted RS-232 serial surge protector that delivers IEC 61643-21 C2 20 kV protection for serial data lines. It shields modems, terminals, I/O ports and instrumentation from transient surges, and supports baud rates from 50 bps to 921.6 kbps with a terminal block connection.

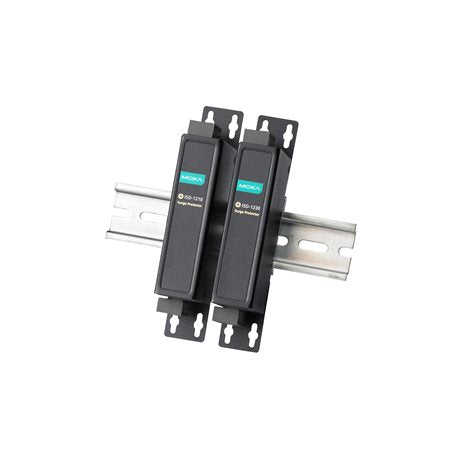

Built for industrial environments, it features a compact metal IP30 housing measuring 95 x 53 x 25 mm and operates across -40 to 85°C. It protects the TxD, RxD, RTS, CTS and GND signals, and installs plug and play. It is the RS-232 model in the ISD-1210-T/1230-T range.

Features

- Plug and play installation
- IEC 61643-21 C2 20 kV surge protection for RS-232 serial data lines
- Compact size for easy installation
- Wide-temperature operation from -40 to 85°C
- Rugged metal housing with DIN-rail mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standard: RS-232
- Surge protection: IEC 61643-21 C2 20 kV
- Connector: Terminal block
- Baudrate: 50 bps to 921.6 kbps
- Serial signals: TxD, RxD, RTS, CTS, GND
- Housing: Metal, IP30
- Mounting: DIN-rail
- Dimensions: 95 x 53 x 25 mm
- Weight: 214 g
- Operating temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- MTBF: 62,642,538 hrs

FAQs

Q: Does the ISD-1210-T support RS-485 or RS-422?
A: No. The ISD-1210-T protects RS-232 lines only. The ISD-1230-T in the same series is the RS-422/485 model.

Q: What level of surge protection does it provide?
A: It provides IEC 61643-21 C2 20 kV surge protection for serial data lines.

Q: Which RS-232 signals are protected?
A: It protects the TxD, RxD, RTS, CTS and GND signals.

Q: How is the ISD-1210-T mounted and connected?
A: It mounts on a DIN rail and connects via a terminal block.

Q: Can it operate in extreme temperatures?
A: Yes. It operates from -40 to 85°C, making it suitable for harsh industrial environments.

Q: What baud rates are supported?
A: It supports baud rates from 50 bps to 921.6 kbps.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
