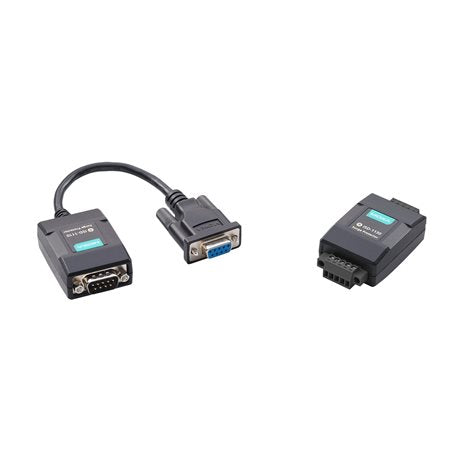

Moxa ISD-1130-T | Data Line Surge Protector, RS-422/485, Terminal Block

Authorised Moxa Partner

SKU:ISD-1130-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ISD-1130-T is an entry-level data line surge protector for 4-wire RS-422/485 serial links, with terminal block connectors for straightforward field wiring. It provides EN 61000-4-5 Level 4 (4 kV) signal surge protection to shield terminals, I/O ports, modems, hubs and instrumentation from transient damage, and supports 2-wire RS-485 and 4-wire RS-422/485 signalling at baudrates from 50 bps to 921.6 kbps.

This plug-and-play unit uses a compact IP30 plastic housing measuring 53 x 37 x 20.6 mm and weighs just 30 g, so it fits easily into control cabinets and desktop installations. Its wide operating temperature range of -40 to 85°C suits harsh industrial and outdoor-adjacent environments. For RS-232 links, the sibling ISD-1110-T is the matching model.

Features

- Plug and play installation
- EN 61000-4-5 Level 4 surge protection for serial data lines
- Supports RS-422 and RS-485 in 2-wire and 4-wire configurations
- Compact size for easy installation in tight spaces
- Wide-temperature design for -40 to 85°C environments
- Protects modems, I/O ports, terminals, instrumentation, hubs and other serial devices

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 data line surge protection
- RS-422 / RS-485 (2-wire and 4-wire)
- 4 kV signal surge protection (IEC 61000-4-5)
- Terminal block serial connector
- Baudrate: 50 bps to 921.6 kbps
- RS-422 and RS-485-4w signals: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w signals: Data+, Data-, GND
- Housing: plastic, IP30
- Dimensions: 53 x 37 x 20.6 mm
- Weight: 30 g (product only)
- Installation: desktop
- Operating temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Safety: EN 60950-1, IEC 60950-1
- MTBF: 62,642,538 hrs

FAQs

Q: Which serial standards does the ISD-1130-T support?
A: It supports RS-422 and RS-485, including 4-wire RS-422, 4-wire RS-485 and 2-wire RS-485, at baudrates from 50 bps to 921.6 kbps.

Q: Can I use the ISD-1130-T on an RS-232 link?
A: No. The ISD-1130-T is designed for RS-422/485 lines. The sibling ISD-1110-T is the model intended for RS-232.

Q: What level of surge protection does it provide?
A: It provides 4 kV signal surge protection to IEC 61000-4-5, which corresponds to EN 61000-4-5 Level 4.

Q: What connector does the ISD-1130-T use?
A: It uses a terminal block serial connector, so cables are wired directly without needing a D-sub adaptor.

Q: Is it suitable for extreme temperature environments?
A: Yes. It is a wide-temperature model rated for operation from -40 to 85°C with 5 to 95% non-condensing humidity.

Q: How is the ISD-1130-T installed?
A: It is a compact plug-and-play unit intended for desktop installation, with an IP30 plastic housing measuring 53 x 37 x 20.6 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
