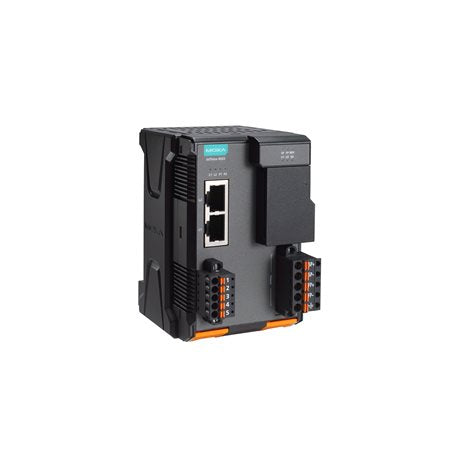

Moxa ioThinx 4533-LX | Modular Controller, Linux, -20 to 60°C

Authorised Moxa Partner

SKU:ioThinx 4533-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ioThinx 4533-LX is an advanced modular controller for industrial data acquisition, combining a dual-core 1 GHz CPU with Moxa Industrial Linux and a built-in serial port. Programmable in C/C++ and Python, it suits edge computing and control applications that need local processing and cloud connectivity. This standard-temperature model is rated for -20 to 60°C operation.

The controller supports up to 64 I/O modules from the 45MR series and up to 5 communication modules from the 45ML series. It offers dual RJ45 Ethernet ports, a software-selectable RS-232/422/485 serial port, a microSD slot and tool-free DIN-rail installation. Built-in Azure, AWS and Alibaba Cloud libraries and an OPC UA server library simplify integration, with secure boot and optional TPM v2.0 support for added protection.

Features

- Tool-free installation and removal
- Moxa Industrial Linux with secure boot function
- Supports up to 64 I/O modules
- Built-in Azure, AWS and Alibaba Cloud library
- Built-in OPC UA server library
- Optional TPM v2.0 support
- Dual-core 1 GHz CPU for edge processing

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Dual-core 1 GHz
- Operating system: Moxa Industrial Linux
- Programming languages: C/C++, Python
- Ethernet: 2 x RJ45
- Serial: 1 x RS-232/422 or 2 x RS-485-2w (software-selectable), spring-type Euroblock terminal
- Console port: RS-232, 3-pin (115200, n, 8, 1)
- Storage expansion: 1 x microSD slot (up to 32 GB)
- Expansion: up to 64 I/O modules (45MR series), up to 5 communication modules (45ML series)
- Power input: 1 x spring-type Euroblock terminal
- Dimensions: 60.3 x 99 x 75 mm
- Weight: 207.7 g
- Mounting: DIN-rail
- Operating temperature: -20 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
- Altitude: up to 4000 m
- Hazardous locations: Class I Division 2, ATEX
- MTBF: 954,606 hrs (Telcordia SR-332)

FAQs

Q: How many I/O modules can the ioThinx 4533-LX support?
A: It supports up to 64 I/O modules from the 45MR series and up to 5 communication modules from the 45ML series.

Q: What operating system and languages does it use?
A: It runs Moxa Industrial Linux with secure boot and can be programmed in C/C++ and Python.

Q: What is the operating temperature range?
A: This model is rated for -20 to 60°C. A wide-temperature variant, the 4533-LX-T, is available for -40 to 75°C.

Q: What serial and network interfaces are included?
A: It has 2 x RJ45 Ethernet ports and one serial port that is either 1 x RS-232/422 or 2 x RS-485-2w, software-selectable.

Q: Does it include cloud and OPC UA support?
A: Yes. It includes built-in Azure, AWS and Alibaba Cloud libraries and an OPC UA server library.

Q: How is the controller mounted?
A: It mounts on a DIN rail, with tool-free installation and removal.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
