Moxa EXPC-F2150W-TL7-DC | EXPC-F2150W 15.6in Fanless Panel PC, Core i7, 16GB, 9-36 VDC

Authorised Moxa Partner

SKU:EXPC-F2150W-TL7-DC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

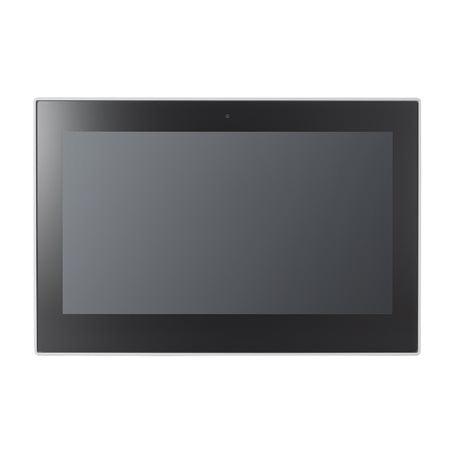

The Moxa EXPC-F2150W-TL7-DC is a 15.6-inch fanless industrial panel PC built around an Intel Core i7-1185G7E processor with Intel Iris Xe Graphics and 16 GB of pre-installed RAM. This DC model runs from a 9 to 36 VDC supply and pairs a 1920 x 1080 PCAP touchscreen rated at 1200 nits with an IP66-rated front panel, making it well suited to harsh factory floors, outdoor kiosks and hazardous-area HMI deployments.

It operates from -40 to 70°C and is certified for hazardous locations (C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22). Connectivity includes four Gigabit Ethernet ports, three software-selectable RS-232/422/485 serial ports, USB 3.0 and USB 2.0 hosts, DisplayPort and VGA. M.2 slots support 5G and Wi-Fi expansion, with Intel AMT and TPM 2.0 for remote management and security.

Features

- Fanless design with an aluminium housing for reliable, low-maintenance operation
- 1200-nit PCAP touchscreen with optical bonding and glove-friendly single-touch support
- IP66-rated front panel for washdown and dusty environments
- Wide -40 to 70°C operating temperature range
- Certified for hazardous locations (C1D2/C2D2, ATEX, IECEx Zone 2/Zone 22)
- Intel AMT remote management and TPM 2.0 security
- M.2 slots for 5G and Wi-Fi expansion plus an external CFexpress storage slot
- UV protection tested to IEC 60068-2-5

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 15.6-inch 1920 x 1080 PCAP touchscreen, 1200 nits, optical bonding
- Intel Core i7-1185G7E with Intel Iris Xe Graphics
- 16 GB RAM pre-installed, 2 x SODIMM DDR4 slots, 64 GB maximum
- 4 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 3 x RS-232/422/485 serial ports (DB9 male, software-selectable)
- 2 x USB 3.0 and 2 x USB 2.0 Type-A hosts
- DisplayPort x 1 and VGA x 1 video outputs
- Storage: M.2 B key slot for SSD (internal, optional) and external CFexpress slot
- Expansion: M.2 B key for 5G module and M.2 E key for Wi-Fi module
- TPM v2.0 and Intel AMT support
- Input voltage: 9 to 36 VDC, 70 W maximum (100 W with thermal heater)
- IP66 front, IP42 rear (with all IOs plugged in)
- Operating temperature: -40 to 70°C
- Aluminium housing, 403.99 x 274.48 x 99 mm, 6,900 g
- Hazardous locations: C1D2/C2D2, ATEX, IECEx Zone 2/Zone 22

FAQs

Q: What power supply does the EXPC-F2150W-TL7-DC use?
A: This is the DC model and accepts a 9 to 36 VDC input. Maximum power consumption is 70 W, or 100 W when the thermal heater is active.

Q: Does it come with an operating system installed?
A: No. An OS is not pre-installed. Windows 11 Professional 23H2 64-bit and Windows 10 Enterprise LTSC 21H2 are supported, with Debian 11 drivers available, and installation is via CTOS.

Q: Can it be used in hazardous locations?
A: Yes. It is certified for hazardous locations including C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22.

Q: How much memory does it have and can it be upgraded?
A: It ships with 16 GB of RAM pre-installed and has two SODIMM DDR4 slots supporting up to 64 GB.

Q: What wireless expansion options are available?
A: It has an M.2 B key slot for a 5G module and an M.2 E key slot for a Wi-Fi module.

Q: What storage options does it support?
A: It has an external CFexpress slot and an internal optional M.2 B key slot for an SSD.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
