Moxa EXPC-F2150W-TL7-AC | EXPC-F2150W Fanless Panel PC, Core i7-1185G7E, 16GB, 1200-nit PCAP, AC

Authorised Moxa Partner

SKU:EXPC-F2150W-TL7-AC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

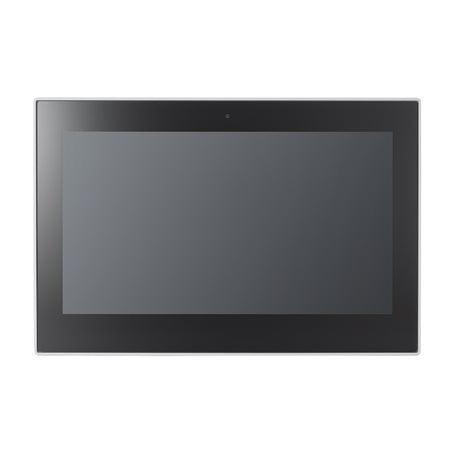

The Moxa EXPC-F2150W-TL7-AC is a 15.6-inch fanless industrial panel PC built around an Intel Core i7-1185G7E processor with Intel Iris Xe Graphics, 16 GB of pre-installed RAM, a 1200-nit optically bonded PCAP touchscreen and an AC power input. Its aluminium housing, IP66-rated front panel and -40 to 70°C operating range suit factory floors, outdoor kiosks and hazardous locations, with C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 certifications.

I/O includes 4 x Gigabit Ethernet ports, 3 x software-selectable RS-232/422/485 serial ports, 2 x USB 3.0, 2 x USB 2.0, DisplayPort and VGA outputs. M.2 slots support 5G and Wi-Fi modules, while Intel AMT and TPM 2.0 provide remote management and platform security. The system accepts 100 to 240 VAC input and supports Windows 11 Professional, Windows 10 Enterprise LTSC and Debian 11 drivers, with the operating system installed via CTOS.

Features

- Fanless aluminium housing for reliable, low-maintenance operation
- 1200-nit optically bonded PCAP touchscreen with glove-friendly 1-point mode
- IP66-rated front panel for washdown and dusty environments
- Wide -40 to 70°C operating range with thermal heater option
- Hazardous location certifications including C1D2, ATEX and IECEx Zone 2
- Intel AMT remote management and TPM 2.0 security
- M.2 slots for 5G and Wi-Fi expansion
- UV protection per IEC 60068-2-5

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-1185G7E with Intel Iris Xe Graphics
- Memory: 16 GB pre-installed, 2 x SODIMM DDR4 slots, up to 64 GB
- Display: 15.6 in, 1920 x 1080, 1200 nits, 750:1 contrast
- Touch: projective capacitive, optically bonded, 4-point multi-touch and 1-point glove-friendly mode
- Storage: 1 x external CFexpress slot, 1 x internal M.2 B key for optional SSD
- Ethernet: 4 x 10/100/1000 Mbps RJ45
- Serial: 3 x RS-232/422/485, DB9 male, software-selectable
- USB: 2 x USB 3.0 Type-A, 2 x USB 2.0 Type-A
- Video output: 1 x DisplayPort, 1 x VGA
- Expansion: M.2 B key for 5G module, M.2 E key for Wi-Fi module
- Security: TPM v2.0, Intel AMT
- Power input: 100 to 240 VAC, 70 W max (100 W with thermal heater)
- Protection: IP66 front, IP42 rear with all I/O plugged in
- Operating temperature: -40 to 70°C
- Dimensions: 403.99 x 274.48 x 99 mm, weight 6,900 g
- Hazardous locations: C1D2/C2D2, ATEX, IECEx Zone 2/Zone 22

FAQs

Q: Does the EXPC-F2150W-TL7-AC come with an operating system installed?
A: No. An operating system is not pre-installed, and installation is performed via CTOS. Supported options are Windows 11 Professional 23H2 64-bit and Windows 10 Enterprise LTSC 21H2, with Debian 11 drivers available.

Q: What power input does this model use?
A: The -AC model accepts 100 to 240 VAC. Maximum power consumption is 70 W, or 100 W when the thermal heater is active.

Q: Can I add wireless connectivity?
A: Yes. An M.2 B key slot supports a 5G module and an M.2 E key slot supports a Wi-Fi module.

Q: How much memory can be installed?
A: This SKU ships with 16 GB pre-installed in 2 x SODIMM DDR4 slots, expandable up to 64 GB.

Q: Is the panel PC suitable for hazardous or outdoor locations?
A: It carries C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 certifications, an IP66 front panel and a -40 to 70°C operating range.

Q: Can the touchscreen be used with gloves?
A: Yes. The PCAP touchscreen offers 4-point multi-touch plus a 1-point glove-friendly mode.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
