Moxa EXPC-F2150W-TL5-DC | EXPC-F2150W 15.6in Fanless Panel PC, Core i5, 16GB, 9-36 VDC

Authorised Moxa Partner

SKU:EXPC-F2150W-TL5-DC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

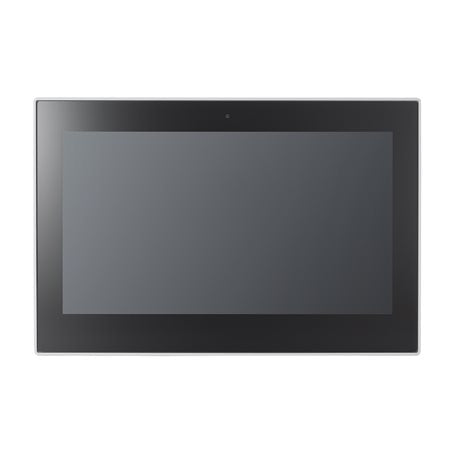

The EXPC-F2150W 15.6-inch fanless industrial panel PC is built around an Intel Core i5-1145G7E processor with 16 GB of DDR4 memory, a 9-36 VDC power input and a 1200-nit sunlight-readable display. The optically bonded PCAP touchscreen supports multi-touch and glove-friendly operation, and the aluminium housing carries IP66 front and IP42 rear ratings. It suits hazardous locations and mission-critical applications.

This model is certified to C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 and operates from -40 to 70°C. I/O includes 4 Gigabit Ethernet ports, 3 software-selectable RS-232/422/485 serial ports, USB 3.0 and USB 2.0 ports, plus DisplayPort and VGA outputs. Internal M.2 slots allow for optional 5G and Wi-Fi modules, and the system supports Windows 11 Professional and Windows 10 Enterprise LTSC.

Features

- 1200-nit sunlight-readable anti-glare display with built-in light sensor for automatic brightness control
- Optically bonded display for harsh environments
- Fanless thermal design for efficient heat dissipation at high temperatures
- UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 certified
- IP66 front and IP42 rear ingress protection
- 40 to 70°C operating temperature range
- Optional 5G and Wi-Fi 6 connectivity via internal M.2 slots
- Designed for hazardous locations and mission-critical applications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 15.6-inch 1920 x 1080 display, 1200 nits, 16:9
- PCAP touchscreen with GGG sensor and optical bonding, 4-point multi-touch and 1-point glove-friendly
- Intel Core i5-1145G7E (11th Gen Tiger Lake) with Intel UHD Graphics
- 16 GB DDR4 pre-installed, 2 x SODIMM slots, up to 64 GB
- 4 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 3 x RS-232/422/485 serial ports, software-selectable, DB9 male
- 2 x USB 3.0 and 2 x USB 2.0 type-A
- DisplayPort and VGA video outputs
- Line in, mic-out and 3.5 mm phone jack audio
- M.2 B key slot for SSD or 5G module, M.2 E key slot for Wi-Fi module, external CFexpress slot
- TPM v2.0 and Intel AMT support
- Input voltage 9 to 36 VDC, 70 W max (100 W with thermal heater)
- Aluminium housing, IP66 front and IP42 rear
- Operating temperature -40 to 70°C
- Hazardous locations: C1D2/C2D2, ATEX, IECEx Zone 2/Zone 22
- Dimensions 403.99 x 274.48 x 99 mm, weight 6,900 g

FAQs

Q: What processor and memory does this model have?
A: It uses an Intel Core i5-1145G7E (11th Gen Tiger Lake) with 16 GB of DDR4 pre-installed. Two SODIMM slots support up to 64 GB.

Q: What power input does the EXPC-F2150W-TL5-DC accept?
A: This DC model accepts 9 to 36 VDC. Maximum consumption is 70 W, or 100 W with the thermal heater.

Q: Is an operating system pre-installed?
A: No. The OS is not pre-installed and is installed via CTOS. Supported systems are Windows 11 Professional 23H2 64-bit and Windows 10 Enterprise LTSC 21H2, with a Debian 11 driver also available.

Q: Can it be used in hazardous locations?
A: Yes. It is certified to C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 under EN/IEC 60079-0, -7 and -15.

Q: Can I add wireless connectivity?
A: Yes. An M.2 B key slot accepts a 5G module and an M.2 E key slot accepts a Wi-Fi module.

Q: Can the touchscreen be used with gloves?
A: Yes. The PCAP touchscreen supports 4-point multi-touch and a 1-point glove-friendly mode.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
