Moxa EXPC-F2150W-TL5-AC | EXPC-F2150W 15.6in Fanless Panel PC, Core i5, 16GB, AC

Authorised Moxa Partner

SKU:EXPC-F2150W-TL5-AC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

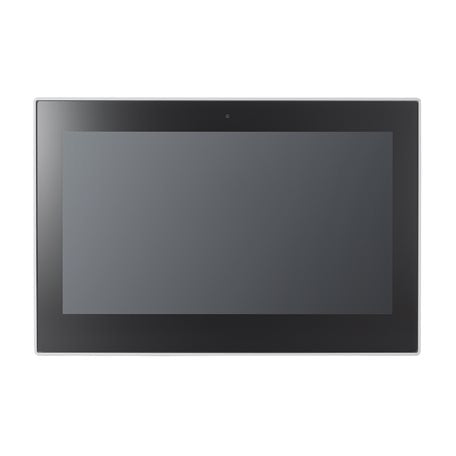

The Moxa EXPC-F2150W-TL5-AC is a 15.6-inch fanless industrial panel PC built around an 11th Gen Intel Core i5-1145G7E processor with 16 GB of memory pre-installed. It pairs a 1920x1080, 1200-nit optically bonded projective capacitive touchscreen with AC power input (100 to 240 VAC), making it suited to sunlight-exposed and harsh operator-station deployments.

Designed for hazardous locations, this panel computer carries UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 approvals, with IP66 front sealing and an operating range of -40 to 70°C. Four Gigabit Ethernet ports, three software-selectable RS-232/422/485 serial ports, USB 3.0 and USB 2.0 hosts, DisplayPort and VGA outputs, plus M.2 expansion for 5G and Wi-Fi modules, give it the connectivity needed for industrial automation, process control and outdoor HMI applications.

Features

- Fanless thermal design for reliable operation in high-temperature environments
- 1200-nit sunlight-readable anti-glare display
- Optical bonding of the display for harsh environments
- Built-in light sensor for automatic brightness control
- Approved for hazardous locations: UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22
- IP66 front and IP42 rear ingress protection
- Wide -40 to 70°C operating temperature range
- Options for 5G and Wi-Fi 6 wireless connections
- Intel AMT remote management and TPM 2.0 for secure, manageable deployments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Core i5-1145G7E (Tiger Lake) processor with Intel UHD Graphics
- 16 GB memory pre-installed, 2 x SODIMM DDR4 slots, up to 64 GB
- 15.6-inch 1920x1080 display, 1200 nits, 750:1 contrast ratio
- Projective capacitive touch with optical bonding, 4-point multi-touch and glove-friendly single-point mode
- 4 x 10/100/1000 Mbps Ethernet (RJ45)
- 3 x RS-232/422/485 serial ports, software-selectable, DB9 male
- 2 x USB 3.0 and 2 x USB 2.0 type-A hosts
- 1 x DisplayPort and 1 x VGA video outputs
- Storage: 1 x CFexpress slot (external), 1 x M.2 B key for optional internal SSD
- Expansion: M.2 B key for 5G module, M.2 E key for Wi-Fi module
- TPM v2.0 and Intel Active Management Technology (AMT)
- Input voltage: 100 to 240 VAC, 70 W max (100 W with thermal heater)
- Aluminium housing, IP66 front and IP42 rear ingress protection
- Operating temperature: -40 to 70°C, altitude up to 3000 m
- Dimensions: 403.99 x 274.48 x 99 mm, weight 6,900 g
- Hazardous locations: UL C1D2/C2D2, ATEX, IECEx Zone 2/Zone 22

FAQs

Q: What power input does the EXPC-F2150W-TL5-AC use?
A: The AC model accepts 100 to 240 VAC. Maximum power consumption is 70 W, or 100 W when the thermal heater is active.

Q: Does this panel PC come with an operating system?
A: No, an OS is not pre-installed. It supports Windows 11 Professional 23H2 64-bit and Windows 10 Enterprise LTSC 21H2, with Debian 11 drivers also available.

Q: Is the EXPC-F2150W-TL5-AC approved for hazardous locations?
A: Yes. It is compliant with UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22, with IP66 front sealing and an operating range of -40 to 70°C.

Q: Can I add wireless connectivity to this panel PC?
A: Yes. It has an M.2 B key slot for a 5G module and an M.2 E key slot for a Wi-Fi module.

Q: How much memory does it have and can it be expanded?
A: 16 GB of DDR4 is pre-installed across two SODIMM slots, and the system supports up to 64 GB.

Q: What storage options does this model offer?
A: It has an external CFexpress slot as the default storage, plus one internal M.2 B key slot for an optional SSD.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
