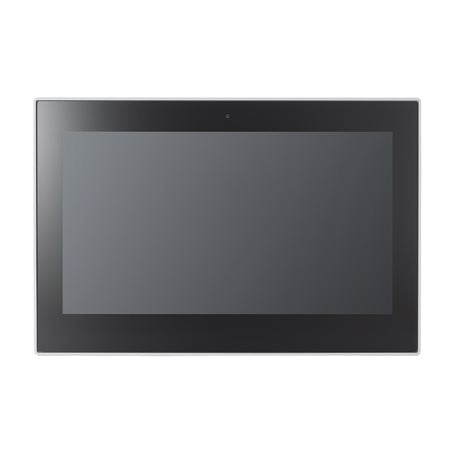

Moxa EXPC-F2150W-TL3-DC | EXPC-F2150W 15.6in Fanless Panel PC, Core i3, 16GB, 9-36 VDC

Authorised Moxa Partner

SKU:EXPC-F2150W-TL3-DC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EXPC-F2150W-TL3-DC is a 15.6-inch fanless industrial panel PC built around an Intel Core i3-1115G4E processor with 16 GB of RAM pre-installed. Its 1200-nit sunlight-readable PCAP touchscreen and DC power input (9-36 VDC) suit factory floors, outdoor kiosks and hazardous-location control rooms. With UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 certification, an IP66-rated front and an operating range of -40 to 70°C, it is made for demanding industrial environments.

The unit provides 4 x LAN, 3 x serial ports, VGA and DisplayPort outputs, and supports up to 64 GB of DDR4 memory across two SODIMM slots. M.2 slots allow optional 5G and Wi-Fi modules, while TPM v2.0 and Intel AMT support secure deployment and remote management. It is supplied without a pre-installed operating system, and a panel-mounting kit and DC terminal block are included.

Features

- UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 compliant
- 1200-nit sunlight-readable anti-glare display with optical bonding
- Built-in light sensor for automatic brightness control
- Fanless thermal design for high-temperature environments
- Front IP66 and rear IP42 certified
- 40 to 70°C operating temperature range
- Options for 5G and Wi-Fi 6 connections
- Glove-friendly projected-capacitive multi-touch screen
- VESA and wall mounting options

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 15.6-inch 16:9 display, 1200 nits, PCAP touchscreen
- CPU: Intel Core i3-1115G4E with Intel UHD Graphics
- Memory: 16 GB pre-installed, 2 x SODIMM DDR4 slots, up to 64 GB
- Storage: external CFexpress slot, internal M.2 B key slot for optional SSD
- Expansion: M.2 B key for 5G module, M.2 E key for Wi-Fi module
- I/O: 4 x LAN, 3 x serial ports, 1 x VGA, 1 x DisplayPort
- Security and management: TPM v2.0, Intel AMT
- Input voltage: 9 to 36 VDC
- Power consumption: 70 W max, 100 W with thermal heater
- IP rating: IP66 front, IP42 rear with all IOs plugged in
- Operating temperature: -40 to 70°C
- Housing: aluminium, fanless design
- Dimensions: 403.99 x 274.48 x 99 mm
- Weight: 6,900 g
- Pre-installed OS: none

FAQs

Q: Does the EXPC-F2150W-TL3-DC come with an operating system?
A: No. It ships without a pre-installed operating system, and OS installation is available via CTOS.

Q: What power input does this model use?
A: It runs on a 9 to 36 VDC input, and a 2-pin terminal block for DC power is included.

Q: Is it certified for hazardous locations?
A: Yes. It is UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 compliant.

Q: How much memory does it support?
A: It ships with 16 GB pre-installed and has two SODIMM DDR4 slots supporting up to 64 GB.

Q: Can I add wireless connectivity?
A: Yes. There is an M.2 B key slot for a 5G module and an M.2 E key slot for a Wi-Fi module.

Q: Is the display readable outdoors?
A: Yes. The 1200-nit PCAP touchscreen is sunlight-readable and has an anti-glare, optically bonded design.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
