Moxa EXPC-F2150W-TL3-AC | EXPC-F2150W 15.6in Fanless Panel PC, Core i3, 16GB, AC

Authorised Moxa Partner

SKU:EXPC-F2150W-TL3-AC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

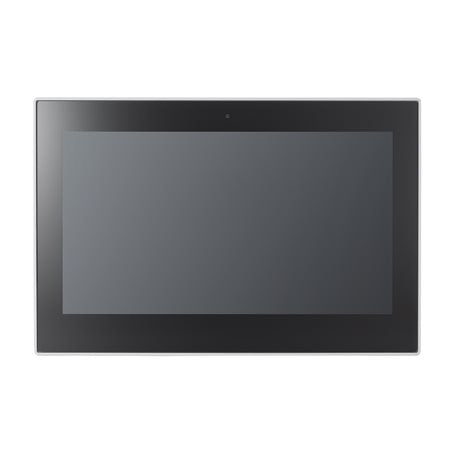

The Moxa EXPC-F2150W-TL3-AC is a 15.6-inch fanless industrial panel PC powered by an Intel Core i3-1115G4E processor with 16 GB of pre-installed memory. Its 1200-nit sunlight-readable projected-capacitive multi-touch display is optically bonded and glove-friendly, and this AC model runs directly from 100 to 240 VAC. Designed for hazardous outdoor locations, it carries Zone 2 certifications (UL C1D2/C2D2, ATEX, IECEx Zone 2/Zone 22) and an IP66 front rating.

The fanless aluminium housing supports operation from -40 to 70°C, while 4 x Gigabit LAN, 3 x RS-232/422/485 serial ports, USB 3.0 and USB 2.0, VGA and DisplayPort outputs cover a wide range of field connectivity. M.2 B key and E key slots allow 5G and Wi-Fi modules to be added, and the system supports Windows 10 Enterprise LTSC, Windows 11 Professional and Debian 11 drivers.

Features

- 1200-nit sunlight-readable anti-glare display
- Optically bonded display for harsh environments
- Projected-capacitive, glove-friendly multi-touch screen
- Built-in light sensor for automatic brightness control
- Fanless thermal design for high-temperature environments
- Zone 2 certifications for hazardous outdoor locations (UL C1D2/C2D2, ATEX, IECEx Zone 2/Zone 22)
- Expansion slots for 5G and Wi-Fi modules
- Supports Windows 10 Enterprise LTSC, Windows 11 Professional and Debian 11

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 15.6-inch 16:9 display, 1200-nit, projected-capacitive multi-touch
- CPU: Intel Core i3-1115G4E with Intel UHD Graphics
- Memory: 16 GB pre-installed, 2 x SODIMM DDR4, up to 64 GB
- Storage: 1 x M.2 B key (internal, optional SSD), 1 x CFexpress slot (external)
- LAN: 4 x 10/100/1000 Mbps RJ45
- Serial: 3 x RS-232/422/485 (DB9 male), software selectable
- USB: 2 x USB 3.0 Type-A, 2 x USB 2.0 Type-A
- Video outputs: VGA and DisplayPort
- Expansion: M.2 B key for 5G module, M.2 E key for Wi-Fi module
- Input voltage: 100 to 240 VAC
- Power consumption: 70 W max, 100 W with thermal heater
- Ingress protection: IP66 (front), IP42 (rear with all IOs plugged in)
- Operating temperature: -40 to 70°C
- Dimensions: 403.99 x 274.48 x 99 mm
- Weight: 6,900 g
- Housing: Aluminium

FAQs

Q: Does the EXPC-F2150W-TL3-AC come with an operating system installed?
A: No. The operating system is not pre-installed. It is installed via CTOS, and supported options include Windows 10 Enterprise LTSC 21H2, Windows 11 Professional 23H2 64-bit and Debian 11 (driver).

Q: What power input does this model use?
A: This is the AC model and accepts 100 to 240 VAC. Maximum power consumption is 70 W, or 100 W when the thermal heater is active.

Q: Can it be used in hazardous outdoor locations?
A: Yes. It carries Zone 2 certifications including UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22, and has an IP66-rated front panel.

Q: How much memory and storage does it support?
A: It ships with 16 GB of memory and has two SODIMM DDR4 slots supporting up to 64 GB. Storage options are an optional internal M.2 B key SSD and an external CFexpress slot.

Q: Can I add wireless connectivity?
A: Yes. There is an M.2 B key slot for a 5G module and an M.2 E key slot for a Wi-Fi module.

Q: Can the touchscreen be used with gloves?
A: Yes. The 1200-nit projected-capacitive display is glove-friendly and supports multi-touch, and its anti-glare surface is readable in direct sunlight.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
