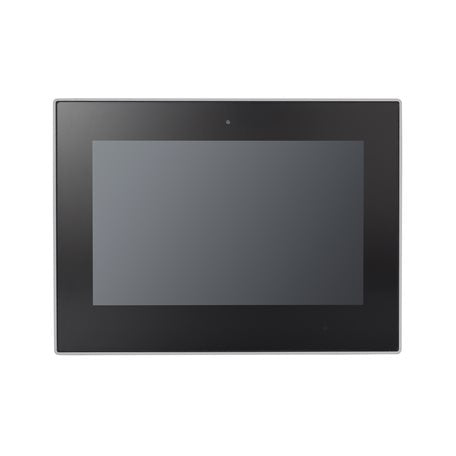

Moxa EXPC-F2120W-TL7-DC | EXPC-F2120W 12.1in Fanless Panel PC, Core i7-1185G7E, 16GB, 9-36 VDC, IP66

Authorised Moxa Partner

SKU:EXPC-F2120W-TL7-DC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EXPC-F2120W-TL7-DC is a 12.1-inch fanless industrial panel PC built around an Intel Core i7-1185G7E processor with Iris Xe graphics and 16 GB of pre-installed DDR4 memory. It pairs a 1200-nit PCAP touchscreen with front IP66 protection, a 9 to 36 VDC power input and a -40 to 70°C operating range, making it suited to hazardous-location control rooms, outdoor kiosks and harsh factory floors.

Connectivity includes four Gigabit Ethernet ports, three software-selectable RS-232/422/485 serial ports, four USB ports, and VGA and DisplayPort video outputs. Expansion is supported through M.2 and CFast slots, and the unit carries ATEX, IECEx Zone 2/Zone 22 and UL C1D2/C2D2 certifications with Windows 10/11 and Debian 11 support.

Features

- Fanless design for reliable operation in harsh environments
- High-brightness 1200-nit display for sunlight readability
- Zone 2 hazardous-location certifications (ATEX, IECEx, UL C1D2/C2D2)
- Panel-mount installation with a wide-temperature -40 to 70°C range
- Serial ports configurable by BIOS or a Moxa software utility
- Four Gigabit Ethernet ports for network segmentation and redundancy

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-1185G7E (Tiger Lake), Intel Iris Xe Graphics
- Memory: 16 GB pre-installed DDR4, 2 x SODIMM slots, up to 64 GB
- Display: 12.1" 16:10 WXGA (1280 x 800), 1200 nits, 750:1 contrast
- Touchscreen: projective capacitive (PCAP)
- Ethernet: 4 x 10/100/1000 Mbps RJ45
- Serial: 3 x RS-232/422/485 (DB9)
- USB: 2 x USB 3.0 Type-A, 2 x USB 2.0 Type-A
- Video outputs: 1 x VGA, 1 x DisplayPort
- Expansion: 1 x M.2 B-key, 1 x CFast slot, M.2 2230 E-key
- Power input: 9 to 36 VDC
- Ingress protection: IP66 (front), IP42 (rear)
- Operating temperature: -40 to 70°C
- Dimensions: 336.69 x 255.17 x 94.05 mm
- Certifications: CE, FCC, UL C1D2/C2D2, ATEX, IECEx Zone 2/Zone 22
- OS support: Windows 10/11, Debian 11

FAQs

Q: What processor and memory does the EXPC-F2120W-TL7-DC include?
A: It uses an Intel Core i7-1185G7E processor with Iris Xe graphics and comes with 16 GB of DDR4 pre-installed. Two SODIMM slots allow expansion up to 64 GB.

Q: What power input does this panel PC accept?
A: It accepts a wide 9 to 36 VDC input, suitable for industrial DC power systems.

Q: Is it suitable for hazardous locations?
A: Yes. It carries ATEX, IECEx Zone 2/Zone 22 and UL C1D2/C2D2 certifications for hazardous-location use.

Q: What ingress protection rating does it have?
A: The front panel is rated IP66 and the rear is rated IP42, so the screen side can be exposed to dust and washdown when panel-mounted.

Q: Which operating systems are supported?
A: Windows 10, Windows 11 and Debian 11 are supported.

Q: What serial and network interfaces are available?
A: There are three DB9 serial ports supporting RS-232/422/485 and four 10/100/1000 Mbps RJ45 Ethernet ports, plus USB, VGA and DisplayPort connections.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
