Moxa EXPC-F2120W-TL7-AC | EXPC-F2000W 12.1in Fanless Panel PC, Core i7, 16GB, AC

Authorised Moxa Partner

SKU:EXPC-F2120W-TL7-AC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

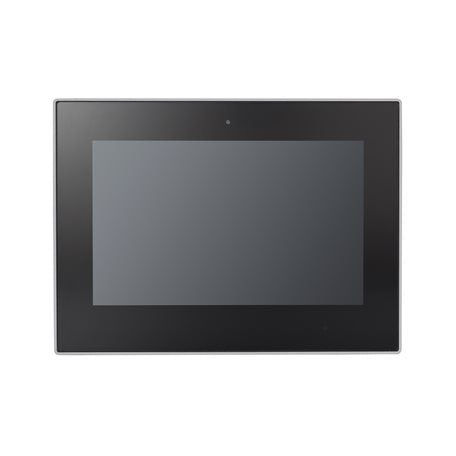

The Moxa EXPC-F2120W-TL7-AC is a 12.1-inch fanless industrial panel PC built around an 11th Gen Intel Core i7-1185G7E processor with 16 GB of pre-installed DDR4 memory. It pairs a 1200-nit optically bonded PCAP touchscreen with an AC power input (100 to 240 VAC) and an IP66-rated front, making it suited to factory floors, outdoor kiosks and hazardous-location deployments.

I/O includes 4 x Gigabit Ethernet ports, 3 x software-selectable RS-232/422/485 serial ports, DisplayPort and VGA outputs, plus USB 3.0 and USB 2.0 hosts. M.2 slots allow 5G and Wi-Fi expansion, while TPM 2.0 and Intel AMT support secure deployment and remote management. Operating temperature ranges from -40 to 70°C, and the unit carries C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 hazardous-location approvals.

Features

- Fanless thermal design for efficient heat dissipation in high-temperature environments
- Suitable for industrial, hazardous and mission-critical environments (C1D2, ATEX, IECEx Zone 2)
- Optically bonded PCAP touchscreen with glove-friendly single-touch mode
- 1200-nit display for sunlight-readable operation
- Expansion slots for 5G (M.2 B key) and Wi-Fi (M.2 E key) modules
- Intel AMT remote management and TPM 2.0 for secure, manageable deployments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Core i7-1185G7E with Intel Iris Xe Graphics
- Memory: 16 GB DDR4 pre-installed, 2 x SODIMM slots, up to 64 GB
- Display: 12.1-inch, 1280 x 800, 1200 nits, PCAP touchscreen with optical bonding
- Touch: 4-point multi-touch, 1-point glove-friendly mode
- Ethernet: 4 x 10/100/1000 Mbps RJ45
- Serial: 3 x RS-232/422/485 (DB9 male)
- USB: 2 x USB 3.0 and 2 x USB 2.0 type-A
- Video output: 1 x DisplayPort, 1 x VGA
- Storage: 1 x M.2 B key (internal, optional), 1 x CFexpress slot
- Expansion: M.2 B key for 5G module, M.2 E key for Wi-Fi module
- Security and management: TPM v2.0, Intel AMT
- Power input: 100 to 240 VAC, 60 W max (100 W with thermal heater)
- Ingress protection: IP66 front, IP42 rear
- Operating temperature: -40 to 70°C
- Housing: aluminium, 336.69 x 255.17 x 94.05 mm, 6,200 g
- Hazardous locations: C1D2/C2D2, ATEX, IECEx Zone 2/Zone 22

FAQs

Q: Does the EXPC-F2120W-TL7-AC come with an operating system installed?
A: No. An operating system is not pre-installed. It supports Windows 10 Enterprise LTSC 21H2 and Windows 11 Professional 23H2 64-bit, with Debian 11 drivers also available, and OS installation is performed via CTOS.

Q: What power input does this model use?
A: This AC model accepts 100 to 240 VAC. Maximum power consumption is 60 W, or 100 W when the thermal heater is active.

Q: Can I add 5G or Wi-Fi connectivity?
A: Yes. There is an M.2 B key slot for a 5G module and an M.2 E key slot for a Wi-Fi module.

Q: Is it suitable for hazardous locations?
A: Yes. The panel PC is rated for C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 environments, and has an IP66-rated front.

Q: How much memory can be installed?
A: The unit ships with 16 GB DDR4 and has two SODIMM slots supporting up to 64 GB.

Q: Does the touchscreen work with gloves?
A: Yes. The PCAP touchscreen supports up to 4-point multi-touch and includes a glove-friendly single-touch mode.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
