Moxa EXPC-F2120W-TL3-DC | EXPC-F2000W 12.1in Fanless Panel PC, Core i3, 16GB, 9-36 VDC

Authorised Moxa Partner

SKU:EXPC-F2120W-TL3-DC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

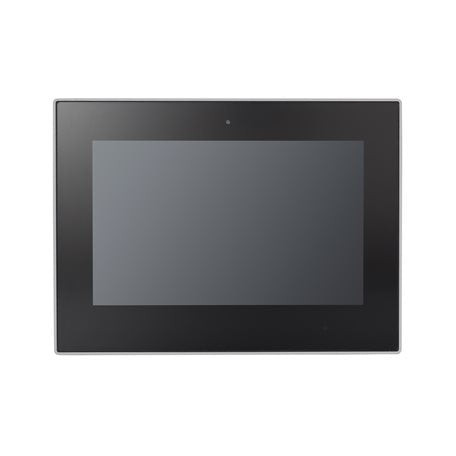

The Moxa EXPC-F2120W-TL3-DC is a 12.1-inch fanless industrial panel PC built around an 11th Gen Intel Core i3-1115G4E processor with 16 GB of pre-installed memory and a 9 to 36 VDC power input. Its 1280 x 800 display delivers 1200 nits with a PCAP touchscreen, making it suited to sunlight-readable operator interfaces in harsh and hazardous locations.

Certified for UL C1D2/C2D2, ATEX and IECEx Zone 2/22, the unit offers an IP66 front, IP42 rear and a -40 to 70°C operating range. Four Gigabit Ethernet ports, three software-selectable RS-232/422/485 serial ports, USB 3.0 and USB 2.0 hosts, DisplayPort and VGA output, plus M.2 expansion for 5G and Wi-Fi modules, support a wide range of industrial automation deployments.

Features

- 1200-nit sunlight-readable anti-glare display
- Projective capacitive touchscreen with glove-friendly single-point mode and 4-point multi-touch
- Optical bonding for harsh environments
- Fanless thermal design for high-temperature operation
- UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 certified
- Built-in light sensor for automatic brightness control
- 11th Gen (Tiger Lake) Intel Core i3 processor
- Options for 5G and Wi-Fi 6 connectivity
- Supports Windows 10 Enterprise LTSC, Windows 11 Professional and Debian 11

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12.1-inch 16:10 display, 1280 x 800, 1200 nits, PCAP touchscreen
- Intel Core i3-1115G4E processor with Intel UHD Graphics
- 16 GB pre-installed memory, 2 x SODIMM DDR4 slots, up to 64 GB
- 4 x 10/100/1000 Mbps Ethernet (RJ45)
- 3 x RS-232/422/485 serial ports (DB9, software-selectable)
- 2 x USB 3.0 and 2 x USB 2.0 Type-A
- 1 x DisplayPort and 1 x VGA video output
- Storage: M.2 B key slot (internal, optional) and external CFexpress slot
- Expansion: M.2 B key for 5G module, M.2 E key for Wi-Fi module
- TPM v2.0
- 9 to 36 VDC input, 60 W max (100 W with thermal heater)
- Aluminium housing, IP66 front / IP42 rear
- Dimensions 336.69 x 255.17 x 94.05 mm, weight 6,200 g
- Operating temperature -40 to 70°C
- Operating system not pre-installed, installed via CTOS

FAQs

Q: Which operating systems does the EXPC-F2120W-TL3-DC support?
A: It supports Windows 10 Enterprise LTSC 21H2 and Windows 11 Professional 23H2 64-bit, with Debian 11 driver support. No operating system is pre-installed; installation is performed via CTOS.

Q: Is this panel PC certified for hazardous locations?
A: Yes. It is certified to UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22.

Q: What power input does this model use?
A: This DC model accepts a 9 to 36 VDC input. Maximum power consumption is 60 W, or 100 W when the thermal heater is active.

Q: Can the memory and storage be expanded?
A: Yes. It has two SODIMM DDR4 slots supporting up to 64 GB, with 16 GB pre-installed. Storage is provided by an internal optional M.2 B key SSD slot and an external CFexpress slot.

Q: Can I add wireless connectivity?
A: Yes. An M.2 B key slot supports a 5G module and an M.2 E key slot supports a Wi-Fi module.

Q: What operating temperature range does it support?
A: The unit operates from -40 to 70°C with a fanless design, and has IP66 front and IP42 rear protection with all I/Os plugged in.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
