Moxa EXPC-F2120W-TL3-AC | EXPC-F2120W 12.1in Fanless Panel PC, Core i3, 16GB, 1200-nit, AC

Authorised Moxa Partner

SKU:EXPC-F2120W-TL3-AC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

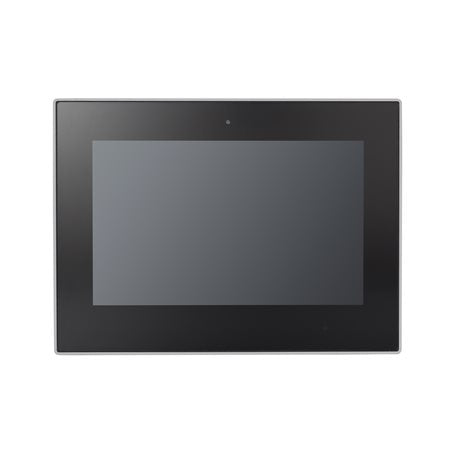

The EXPC-F2120W-TL3-AC is a 12.1-inch fanless industrial panel PC built around an Intel Core i3-1115G4E processor with 16 GB of pre-installed memory. It pairs a 1200-nit PCAP touchscreen with optical bonding and an IP66-rated front panel, making it well suited to HMI applications in harsh and hazardous environments. This AC model accepts a 100 to 240 VAC power input and operates across a -40 to 70°C temperature range.

Connectivity includes four Gigabit Ethernet ports, three software-selectable RS-232/422/485 serial ports, USB 3.0 and USB 2.0 host ports, plus DisplayPort and VGA outputs. Two M.2 slots allow for 5G and Wi-Fi expansion, while TPM 2.0 and Intel AMT support secure and remote management. The unit carries C1D2, ATEX and IECEx Zone 2 hazardous location certifications and supports Windows 10 Enterprise LTSC, Windows 11 Professional and Debian 11 drivers.

Features

- Fanless design with a wide -40 to 70°C operating temperature range
- 1200-nit PCAP touchscreen with optical bonding and a glove-friendly touch mode for readability and control in demanding conditions
- IP66-rated front panel for washdown and dust-prone environments
- Hazardous location certifications: C1D2, ATEX and IECEx Zone 2
- Two M.2 slots for 5G and Wi-Fi expansion
- Intel AMT remote management and TPM 2.0 security
- UV protection tested to IEC 60068-2-5 / CIE85
- Windows 10 IoT / Windows 11 and Debian 11 driver support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12.1-inch 1280 x 800 display, 1200 nits, 16:10 aspect ratio
- PCAP touchscreen with optical bonding, 4-point multi-touch and glove-friendly mode
- Intel Core i3-1115G4E CPU with Intel UHD Graphics
- 16 GB pre-installed memory, 2 x SODIMM DDR4 slots, 64 GB maximum
- Storage: 1 x M.2 B key for SSD (optional), 1 x CFexpress slot
- 4 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 3 x RS-232/422/485 serial ports (DB9 male)
- 2 x USB 3.0 and 2 x USB 2.0 host ports (type-A)
- 1 x DisplayPort and 1 x VGA (15-pin D-sub female)
- Audio: 1 x line in, 1 x mic-out (3.5 mm)
- Expansion: 1 x M.2 B key for 5G module, 1 x M.2 E key for Wi-Fi module
- Power input: 100 to 240 VAC, 60 W maximum (100 W with thermal heater)
- IP66 front, IP42 rear (with all IOs plugged in)
- Operating temperature: -40 to 70°C
- Aluminium housing, 336.69 x 255.17 x 94.05 mm, 6.2 kg
- TPM v2.0 and Intel AMT support
- Hazardous locations: C1D2/C2D2, ATEX, IECEx Zone 2/Zone 22

FAQs

Q: What processor and memory does the EXPC-F2120W-TL3-AC use?
A: It uses an Intel Core i3-1115G4E processor with Intel UHD Graphics and 16 GB of pre-installed memory. Two SODIMM DDR4 slots support up to 64 GB.

Q: Does this model run on AC or DC power?
A: This is the AC model and accepts a 100 to 240 VAC power input.

Q: Does it come with an operating system installed?
A: No, an OS is not pre-installed. It supports Windows 10 Enterprise LTSC 21H2 and Windows 11 Professional 23H2 64-bit, with a Debian 11 driver available, and OS installation is available via CTOS.

Q: Can it be used in hazardous locations?
A: Yes. It carries C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 certifications, and has an IP66-rated front panel.

Q: Can I add wireless connectivity?
A: Yes. It includes an M.2 B key slot for a 5G module and an M.2 E key slot for a Wi-Fi module.

Q: What storage options are available?
A: It has an external CFexpress slot as standard and an internal M.2 B key slot for an optional SSD.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
