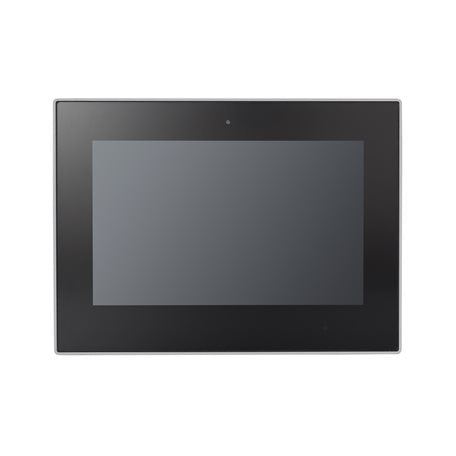

Moxa EXPC-F2120W-TL1-AC | EXPC-F2120W 12.1in Fanless Panel PC, Celeron 6305E, 16GB, AC, 1200-nit

Authorised Moxa Partner

SKU:EXPC-F2120W-TL1-AC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EXPC-F2120W-TL1-AC is a 12.1-inch fanless industrial panel PC built around an Intel Celeron 6305E processor with 16 GB of RAM pre-installed. It pairs a 1200-nit sunlight-readable, optically bonded projected-capacitive touchscreen with a 100 to 240 VAC power input, and is certified for hazardous locations including UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22.

With an aluminium housing rated IP66 at the front and IP42 at the rear, a fanless thermal design and an operating range of -40 to 70 C, it suits outdoor, oil and gas, and other harsh-environment HMI deployments. Connectivity includes 4 x Gigabit Ethernet, 3 x software-selectable RS-232/422/485 serial ports, USB 3.0 and USB 2.0 hosts, DisplayPort and VGA outputs, plus M.2 expansion for optional 5G and Wi-Fi modules. The touchscreen supports multi-touch and glove-friendly single-point operation.

Features

- 1200-nit sunlight-readable anti-glare display with optical bonding
- Built-in light sensor for automatic brightness control
- Fanless thermal design for high-temperature environments
- UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 certified
- Front IP66 and rear IP42 ingress protection
- 40 to 70 C operating temperature range
- Glove-friendly projected-capacitive multi-touch screen
- Options for 5G and Wi-Fi 6 connections via M.2 slots
- Four Gigabit Ethernet ports and three software-selectable serial ports for industrial connectivity

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12.1-inch 16:10 WXGA (1280 x 800) display, 1200 nits, 750:1 contrast
- Intel Celeron 6305E processor with Intel UHD Graphics
- 16 GB RAM pre-installed, 2 x SODIMM DDR4 slots, up to 64 GB
- Storage: 1 x M.2 B key for optional internal SSD, 1 x external CFexpress slot
- 4 x 10/100/1000 Mbps Ethernet (RJ45)
- 3 x RS-232/422/485 serial ports (DB9 male, software-selectable)
- 2 x USB 3.0 and 2 x USB 2.0 type-A hosts
- DisplayPort and VGA (15-pin D-sub) video outputs
- Audio: line in and mic-out, 3.5 mm jacks
- Expansion: M.2 B key for 5G module, M.2 E key for Wi-Fi module
- TPM v2.0 and Intel AMT remote management support
- Projective capacitive touch, 4-point multi-touch, GGG sensor with optical bonding
- Input voltage: 100 to 240 VAC, 60 W maximum (100 W with thermal heater)
- Aluminium housing, IP66 front and IP42 rear
- Operating temperature: -40 to 70 C
- Dimensions: 336.69 x 255.17 x 94.05 mm, weight 6,200 g
- Hazardous locations: C1D2/C2D2, ATEX, IECEx Zone 2/Zone 22
- Operating system not pre-installed, supports Windows 10 Enterprise LTSC 21H2, Windows 11 Professional 23H2 and Debian 11

FAQs

Q: Does the EXPC-F2120W-TL1-AC come with an operating system installed?
A: No, an operating system is not pre-installed. It supports Windows 10 Enterprise LTSC 21H2 and Windows 11 Professional 23H2 64-bit, with a Debian 11 driver available, and OS installation can be done via CTOS.

Q: What power input does this model use?
A: This is the AC model and accepts 100 to 240 VAC. It ships with an AC adapter cable (C14 male to C15 female). Maximum power consumption is 60 W, or 100 W with the thermal heater active.

Q: Is it suitable for hazardous locations?
A: Yes. It is certified to UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22, and is built for use from -40 to 70 C with an IP66-rated front panel.

Q: Can I add wireless connectivity?
A: Yes. It has an M.2 B key slot for a 5G module and an M.2 E key slot for a Wi-Fi module, so wireless can be added as an option.

Q: How much memory and storage can it take?
A: It comes with 16 GB of RAM installed and has two SODIMM DDR4 slots supporting up to 64 GB. Storage options are an external CFexpress slot and an internal M.2 B key slot for an optional SSD.

Q: Can the touchscreen be used with gloves?
A: Yes. The projected-capacitive touchscreen supports 4-point multi-touch and single-point glove-friendly operation, with an optically bonded GGG sensor for use in harsh environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
