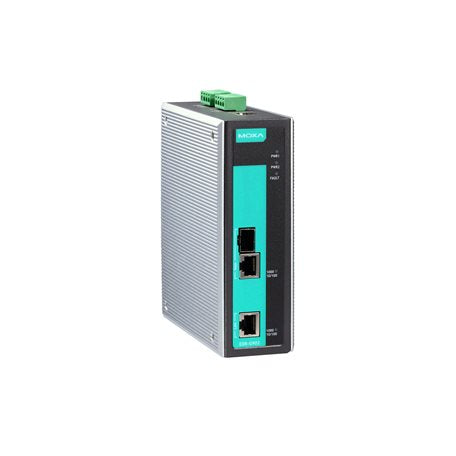

Moxa EDR-G902 | Industrial Firewall/NAT Secure Router, 10 VPN, 0-60C

Authorised Moxa Partner

SKU:EDR-G902

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-G902 is an industrial Gigabit firewall/NAT secure router with a combo WAN port, a Gigabit LAN port and 10 VPN tunnels, built to protect critical industrial control networks. This standard-temperature model operates from 0 to 60°C and combines a stateful firewall, NAT and secure remote access VPN in a single compact unit.

PacketGuard deep packet inspection filters industrial protocols such as Modbus TCP at the application layer, while VRRP routing redundancy and RSTP/Turbo Ring support help keep control networks available. Security features are aligned to IEC 62443 and NERC CIP, and the Quick Automation Profile simplifies setup for EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, Modbus TCP and PROFINET. For deployments needing a wider temperature range, the -T variant is available.

Features

- Secure remote access tunnel with VPN
- Stateful firewall protects critical assets
- PacketGuard deep packet inspection of industrial protocols such as Modbus TCP filtering at OSI layer 7
- Network Address Translation (NAT) for easy network setup
- RSTP/Turbo Ring redundancy protocols
- Security features based on IEC 62443/NERC CIP
- Intelligent Settings Check feature for firewall configuration
- Quick Automation Profile supports EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, Modbus TCP and PROFINET

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x combo WAN port (10/100/1000BaseT(X) RJ45 or 100/1000BaseSFP)
- 1 x 10/100/1000BaseT(X) LAN port (RJ45)
- 10 VPN tunnels
- Routing throughput: 25,000 packets per second (max. 300 Mbps)
- Routing redundancy: VRRP
- VPN protocols: IPsec, L2TP (server), PPTP (client), OpenVPN
- 1 x RS-232 console port
- 1 x relay output (1 A @ 24 VDC)
- 1 x digital input
- Input voltage: 12/24/48 VDC
- Operating temperature: 0 to 60°C (32 to 140°F)
- MTBF: 981,233 hrs
- Package includes router, RJ45-to-DB9 console cable, document/software CD, quick installation guide and warranty card; SFP modules sold separately

FAQs

Q: How many VPN tunnels does the Moxa EDR-G902 support?
A: The EDR-G902 supports 10 VPN tunnels, using IPsec, L2TP (server), PPTP (client) and OpenVPN protocols.

Q: What WAN and LAN interfaces does it provide?
A: It has one combo WAN port that can be used as 10/100/1000BaseT(X) RJ45 or 100/1000BaseSFP, plus one 10/100/1000BaseT(X) RJ45 LAN port. SFP modules are sold separately.

Q: What is the operating temperature range of this model?
A: This standard model operates from 0 to 60°C (32 to 140°F). The -T model is the wide-temperature variant for harsher environments.

Q: Can it filter industrial protocols?
A: Yes. PacketGuard deep packet inspection allows filtering of industrial protocols such as Modbus TCP at OSI layer 7, alongside the stateful firewall.

Q: What routing redundancy does the EDR-G902 offer?
A: It supports VRRP for routing redundancy, and RSTP/Turbo Ring protocols for network redundancy.

Q: What power input does it accept?
A: It accepts a 12/24/48 VDC input, and also includes a relay output and a digital input for alarm and control integration.
