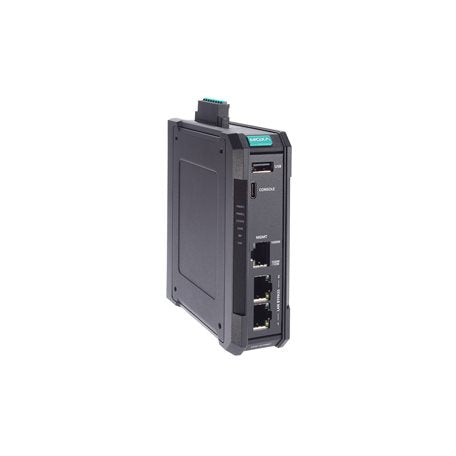

Moxa EDF-G1002-BP-T | EDF-G1002-BP Industrial LAN Firewall, IPS, -40 to 75°C, 2x GbE

Authorised Moxa Partner

SKU:EDF-G1002-BP-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDF-G1002-BP-T is an industrial LAN firewall with two Gigabit Ethernet ports and a dedicated Ethernet management port, designed to segment and protect operational technology networks. It combines an Intrusion Prevention System (IPS) with deep packet inspection of industrial protocols and a Gen3 bypass function. The -T variant is rated for wide temperature operation from -40 to 75°C, suiting unconditioned cabinets, outdoor enclosures and harsh plant environments.

The compact metal housing mounts on a DIN-rail or wall and runs from redundant 12/24/48 VDC inputs via a removable terminal block. Centralised management is available through MXsecurity and MXstudio, with web console, SSH, SNMP and syslog options for integration into existing monitoring and security workflows.

Features

- Intrusion Prevention System (IPS)
- Deep Packet Inspection (DPI) for industrial protocols
- Gen3 bypass function
- Centralised management through MXsecurity and MXstudio
- Management via web console (HTTP/HTTPS), SSH, Telnet, SNMPv1/v2c/v3, LLDP, TFTP and DDNS
- Security: Secure Boot, RADIUS, TACACS+, SCP, SFTP, NTP and Syslog authentication
- Event logging for firewall, protocol DPI and IDS/IPS events to a syslog server, local storage or SNMP trap
- Redundant dual power inputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) ports (RJ45)
- 1 x 10/100/1000BaseT(X) MGMT port (RJ45)
- 1 x RS-232 console port (USB Type-C connector)
- Reset button
- Firewall throughput: 45K packets per second / 500 Mbps (RFC 2544)
- Max. 120K concurrent connections (RFC 3511)
- Max. 6K connections per second (RFC 3511)
- Input voltage: 12/24/48 VDC, redundant dual inputs, removable terminal block
- Input current: 0.69 A (max)
- Reverse polarity protection supported
- Metal housing
- Dimensions: 35 x 125 x 100 mm
- Weight: 385 g
- DIN-rail and wall mounting
- Operating temperature: -40 to 75°C (-40 to 167°F)

FAQs

Q: What does the -T in EDF-G1002-BP-T mean?
A: The -T denotes the wide temperature variant, rated for operation from -40 to 75°C (-40 to 167°F).

Q: How many network ports does the EDF-G1002-BP-T have?
A: It has two 10/100/1000BaseT(X) RJ45 ports for traffic, plus one dedicated 10/100/1000BaseT(X) RJ45 management port.

Q: What firewall performance can I expect?
A: Firewall throughput is rated at 45K packets per second (500 Mbps, RFC 2544), with up to 120K concurrent connections and 6K connections per second (RFC 3511).

Q: What power input does it support?
A: It accepts 12/24/48 VDC on redundant dual inputs through a removable terminal block, with reverse polarity protection and a maximum input current of 0.69 A.

Q: How can multiple units be managed centrally?
A: The firewall supports centralised management through MXsecurity and MXstudio, as well as web console (HTTP/HTTPS), SSH, SNMP and syslog integration.

Q: How is the EDF-G1002-BP-T mounted?
A: It supports both DIN-rail and wall mounting in a compact 35 x 125 x 100 mm metal housing weighing 385 g.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
