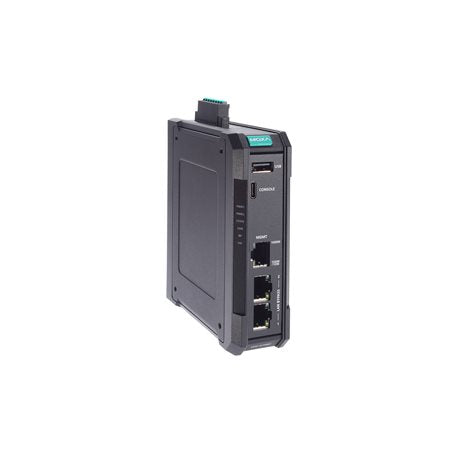

Moxa EDF-G1002-BP/KC | EDF-G1002-BP Industrial Firewall, Gen3 Bypass, 2x LAN + MGMT, KC

Authorised Moxa Partner

SKU:EDF-G1002-BP/KC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDF-G1002-BP/KC is an industrial firewall with IPS and deep packet inspection, built to protect critical assets and network zones in ITS, water, oil and gas, and factory automation environments. It provides two 10/100/1000BaseT(X) LAN ports plus a dedicated RJ45 management port, with software-configurable Gen3 LAN bypass for bump-in-the-wire installation. This is the KC (Korea certification) variant of the EDF-G1002-BP series.

The firewall delivers up to 1000 Mbps firewall throughput and 500 Mbps IPS throughput, supporting up to 120K concurrent connections. Deep packet inspection covers industrial protocols including Modbus, DNP3, IEC 104, IEC 61850 MMS, EtherNet/IP, OPC UA and S7. A metal housing, redundant 9.6 to 60 VDC power inputs and DIN-rail or wall mounting suit installation in demanding industrial cabinets.

Features

- Gen3 LAN bypass for bump-in-the-wire installation with minimal network disruption
- Intrusion prevention system (IPS) and deep packet inspection for industrial protocols
- DoS/DDoS protection including SYN flood, UDP flood, ICMP flood and port scan defence
- Real-time firewall event logging to syslog, local storage and SNMP trap
- Centralised network security and policy management
- Management via web console (HTTP/HTTPS), SNMPv1/v2c/v3, SSH, Telnet, TFTP, LLDP and DDNS
- Secure Boot, RADIUS, TACACS+, SCP and SFTP support
- Hazardous location approvals (ATEX, Class I Div 2, IECEx)
- Redundant dual DC power inputs with reverse polarity protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) LAN ports (RJ45) plus 1 x MGMT port (RJ45)
- Gen3 software-configurable LAN bypass
- Firewall throughput: max. 1000 Mbps / 80K pps (RFC 2544)
- IPS throughput: max. 500 Mbps / 40K pps (RFC 2544)
- Max. 120K concurrent connections, max. 6K connections per second
- Ethernet standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x flow control
- Console port: RS-232, 3-pin (115200, n, 8, 1)
- USB Type-C connector
- Alarm contact: resistive load 1 A @ 24 VDC
- Operating voltage: 9.6 to 60 VDC, redundant dual inputs via removable terminal block
- Input current: 0.69 A (max), reverse polarity protection
- Metal housing, 35 x 125 x 100 mm, 385 g
- DIN-rail or wall mounting
- Storage temperature: -40 to 85 C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 2,929,641 hrs (Telcordia)

FAQs

Q: What does Gen3 bypass do on the EDF-G1002-BP/KC?
A: Gen3 bypass is a software-configurable LAN bypass function that allows the firewall to be installed in-line in a bump-in-the-wire arrangement with minimal network disruption.

Q: Which industrial protocols can the firewall inspect?
A: Deep packet inspection supports industrial protocols including Modbus, DNP3, IEC 104, IEC 61850 MMS, EtherNet/IP, OPC UA and S7, among others.

Q: What are the throughput figures?
A: Firewall throughput is up to 1000 Mbps (80K pps) and IPS throughput is up to 500 Mbps (40K pps), measured per RFC 2544.

Q: Does IPS require an additional licence?
A: IPS is enabled by default, but pattern updates require an additional licence.

Q: How is the unit powered and mounted?
A: It accepts 9.6 to 60 VDC through redundant dual power inputs on a removable terminal block, and mounts on a DIN rail or a wall.

Q: How many network ports does it have?
A: It has two 10/100/1000BaseT(X) LAN ports for the protected network path and one dedicated RJ45 management port.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
