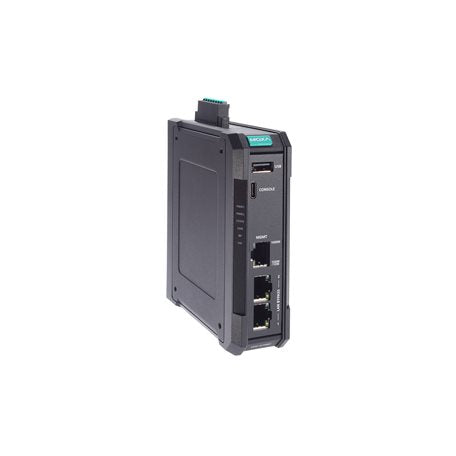

Moxa EDF-G1002-BP | Industrial Firewall, Gen3 LAN Bypass, DIN-Rail, 2x GbE

Authorised Moxa Partner

SKU:EDF-G1002-BP

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDF-G1002-BP is an industrial next-generation LAN firewall with 2x Gigabit LAN ports and a dedicated Gigabit management port. It uses IPS/IDS and Deep Packet Inspection to protect mission-critical OT assets and segment network zones, while Gen3 LAN bypass allows bump-in-the-wire installation with minimal impact on the network. This is the standard temperature model, rated for -10 to 60 C operation, without conformal coating.

Built for control cabinets and plant-floor deployments, it has a compact metal housing with DIN-rail and wall mounting, redundant 12/24/48 VDC dual power inputs (9.6 to 60 VDC) and reverse polarity protection. Policies, patterns and firmware can be managed centrally through MXsecurity, with MXstudio supporting visualised industrial network management.

Features

- Bump-in-the-wire installation without impacting the network
- Gen3 LAN bypass for system fault tolerance
- Industrial-grade IPS/IDS with Monitor and Protect modes
- Deep Packet Inspection of industrial protocol data
- Secure Boot for system integrity checking
- One-click check for firewall policy misconfiguration
- Centralised management and pattern, firmware and policy updates via MXsecurity
- MXstudio support for visualised industrial network management

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) LAN ports (RJ45) plus 1 x 10/100/1000BaseT(X) MGMT port
- Gen3 LAN bypass
- IPS/IDS and Deep Packet Inspection (DPI)
- Firewall throughput: up to 1000 Mbps / 80K packets per second (RFC 2544)
- Console port: RS-232 via USB Type-C connector
- Redundant dual power inputs, 12/24/48 VDC (operating range 9.6 to 60 VDC)
- Power consumption: 8.3 W maximum
- Reverse polarity protection supported
- Alarm contact: resistive load 1 A at 24 VDC
- Operating temperature: -10 to 60 C
- Metal housing, 35 x 125 x 100 mm, 385 g
- DIN-rail and wall mounting
- Package includes 1 x DB9 female to USB Type-C cable

FAQs

Q: What does Gen3 LAN bypass do on the EDF-G1002-BP?
A: It lets the firewall be installed inline as a bump-in-the-wire device with minimal impact on the network, and provides fault tolerance if the firewall has a system fault.

Q: What operating temperature range does this model support?
A: This is the standard temperature model, rated for -10 to 60 C, and it does not have conformal coating.

Q: How many network ports does it have?
A: Three 10/100/1000BaseT(X) RJ45 ports: two LAN ports for inline traffic and one dedicated MGMT port.

Q: How is the EDF-G1002-BP powered?
A: It has redundant dual power inputs for 12/24/48 VDC (9.6 to 60 VDC operating range) via a removable terminal block, with reverse polarity protection.

Q: Can it be managed centrally across multiple firewalls?
A: Yes. MXsecurity provides centralised management and pattern, firmware and policy updates, and MXstudio supports visualised industrial network management.

Q: How can it be mounted?
A: It supports both DIN-rail and wall mounting, in a compact metal housing measuring 35 x 125 x 100 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
