Moxa EDF-G1002-BP-CT-T/KC | EDF-G1002-BP Industrial LAN Firewall, Gen3 Bypass, -40 to 75°C, 2x GbE

Authorised Moxa Partner

SKU:EDF-G1002-BP-CT-T/KC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

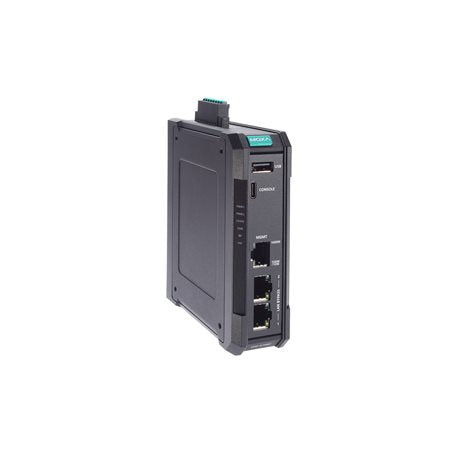

The Moxa EDF-G1002-BP-CT-T/KC is an industrial LAN firewall with two Gigabit LAN ports, a dedicated Gigabit management port, IPS and DPI protection and software-configurable Gen3 LAN bypass. This variant is conformal coated and rated for the -40 to 75°C wide operating temperature range, making it well suited to protecting PLCs, SCADA cells and control networks in harsh environments such as substations, factories and outdoor cabinets.

Bump-in-the-wire installation lets you segment and secure an OT network without changing its IP addressing or disrupting traffic. The metal housing supports DIN-rail and wall mounting, redundant 12/24/48 VDC power inputs keep the firewall running through a supply fault, and central policy management is available through MXsecurity with network visualisation in MXstudio.

Features

- Software-configurable Gen3 LAN bypass for fault tolerance
- Bump-in-the-wire installation without impacting the network
- Industrial-grade Intrusion Prevention/Detection System (IPS/IDS) with Monitor and Protect modes
- Deep Packet Inspection (DPI) for industrial protocol data
- Secure Boot for system integrity checking
- One-click firewall policy misconfiguration check
- Centralised management and policy control via MXsecurity
- Supports MXstudio for visualised industrial network management

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) LAN ports (RJ45)
- 1 x 10/100/1000BaseT(X) management port (RJ45)
- 1 x RS-232 console port (USB Type-C connector)
- Firewall throughput: max. 1000 Mbps / 80K pps (RFC 2544)
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Conformal coating
- Metal housing, DIN-rail and wall mounting
- 12/24/48 VDC redundant dual power inputs
- Digital input and alarm contact (1 A @ 24 VDC resistive)
- LED indicators: PWR1, PWR2, STATE, BYPASS, USB

FAQs

Q: What operating temperature range does the EDF-G1002-BP-CT-T/KC support?
A: It is rated for -40 to 75°C (-40 to 167°F) operation and is conformal coated for harsh industrial environments.

Q: How is the firewall installed in an existing OT network?
A: It can be deployed bump-in-the-wire between network segments, so it can protect devices without changes to existing IP addressing or network design.

Q: What does the Gen3 LAN bypass do?
A: If the firewall loses power or a fault occurs, the bypass function can keep traffic flowing between the two LAN ports so the protected network stays connected. It is software configurable.

Q: Can I manage multiple firewalls centrally?
A: Yes. Firewall policies and monitoring can be managed centrally through MXsecurity, and the firewall also supports MXstudio for visualised industrial network management.

Q: How is the firewall powered and mounted?
A: It accepts 12/24/48 VDC on redundant dual power inputs and mounts on a DIN rail or a wall using its metal housing.

Q: How does this model differ from other EDF-G1002-BP variants?
A: This SKU combines the -40 to 75°C wide temperature rating with conformal coating and the /KC variant designation, so it suits harsher deployments than a standard-temperature unit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
