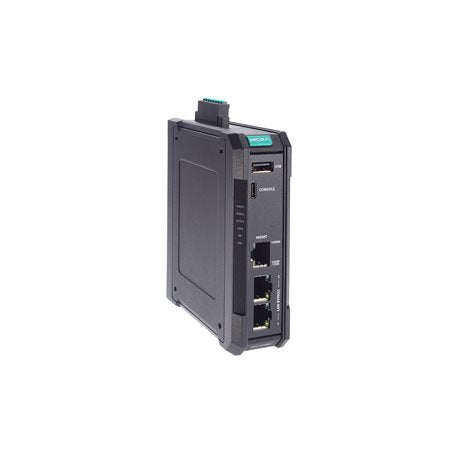

Moxa EDF-G1002-BP-CT-T | EDF-G1002-BP Industrial Firewall, Gen3 Bypass, Conformal, -40 to 75°C

Authorised Moxa Partner

SKU:EDF-G1002-BP-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDF-G1002-BP-CT-T is an industrial next-generation LAN firewall with two Gigabit LAN ports and a dedicated Ethernet management port. This conformal-coated variant is built for harsh deployments, operating from -40 to 75°C, and includes Gen3 LAN bypass so traffic keeps flowing if the unit loses power or fails.

It combines an Intrusion Prevention System with OT-centric Deep Packet Inspection for industrial protocols such as Modbus, DNP3, IEC 61850, EtherNet/IP and OPC UA. Redundant dual 9.6 to 60 VDC inputs, a compact metal housing for DIN-rail or wall mounting, and central management through MXsecurity make it suited to protecting control networks in transport, marine, energy and hazardous-location environments.

Features

- OT-centric Deep Packet Inspection for Modbus, DNP3, IEC 61850, EtherNet/IP, OPC UA, Siemens S7 and other industrial protocols
- Intrusion Prevention System enabled by default (pattern updates require an additional licence)
- Gen3 bypass keeps LAN traffic flowing
- Centralised management through MXsecurity
- Conformal coating and -40 to 75°C operation for harsh environments
- Redundant dual power inputs with reverse polarity protection
- Secure Boot and trust access control
- DoS/DDoS protection and filtering by IP, MAC, port, ICMP and Ethernet protocol
- Event logging to Syslog server, local storage or SNMP trap

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) LAN ports plus 1 x MGMT port (RJ45)
- Gen3 LAN bypass
- Firewall throughput: max. 1000 Mbps / 80K pps (RFC 2544)
- IPS throughput: max. 500 Mbps / 40K pps (RFC 2544)
- Max. 120K concurrent connections, 6K connections per second
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Conformal-coated board
- Redundant dual 9.6 to 60 VDC inputs, removable terminal block
- Reverse polarity protection
- Console: USB Type-C
- Metal housing, DIN-rail or wall mounting
- Dimensions: 35 x 125 x 100 mm, weight 385 g
- Humidity: 5 to 95% (non-condensing)
- Certifications include DNV, ATEX, IECEx, Class I Division 2, EN 50121-4 and NEMA TS2
- MTBF: 2,929,641 hrs

FAQs

Q: What does the Gen3 bypass do?
A: Gen3 LAN bypass keeps traffic passing between the two LAN ports when the firewall is unpowered or has failed, which helps avoid a network outage on the protected segment.

Q: What is the operating temperature range?
A: This -T model operates from -40 to 75°C, with a storage range of -40 to 85°C.

Q: Does it support industrial protocol inspection?
A: Yes. Deep Packet Inspection covers Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, MELSEC, Omron FINS, OPC UA and Siemens S7 Comm. and S7 Comm. Plus.

Q: Is a licence required for IPS?
A: The Intrusion Prevention System is enabled by default, but IPS pattern updates require an additional licence.

Q: How is the firewall powered?
A: It has redundant dual power inputs accepting 9.6 to 60 VDC (12/24/48 VDC nominal) on a removable terminal block, with reverse polarity protection.

Q: How can multiple units be managed?
A: Units can be managed centrally through Moxa MXsecurity, or individually via the web console (HTTP/HTTPS), SSH, Telnet, SNMP and related protocols.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
