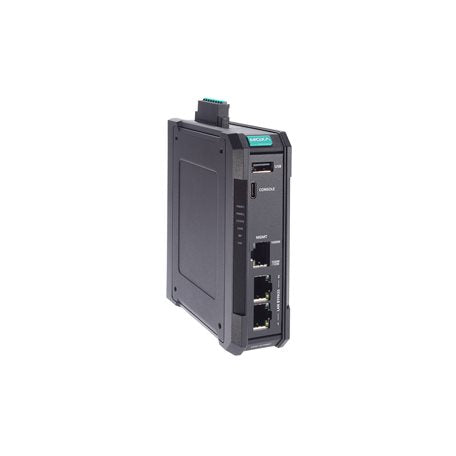

Moxa EDF-G1002-BP-CT/KC | EDF-G1002-BP Industrial Firewall, Conformal Coat, -10 to 60C, /KC, 2x GbE

Authorised Moxa Partner

SKU:EDF-G1002-BP-CT/KC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDF-G1002-BP-CT/KC is an industrial next-generation LAN firewall with two Gigabit LAN ports and one management port, built for securing operational technology networks. It combines an Intrusion Prevention System with OT-protocol Deep Packet Inspection and Gen3 bypass, delivering up to 1000 Mbps of firewall throughput. This variant is rated for -10 to 60°C operation and features conformal-coated circuitry for harsh environments.

Deep Packet Inspection covers industrial protocols including Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, OPC UA and Siemens S7. The compact metal housing mounts on a DIN-rail or wall, runs from redundant dual 12/24/48 VDC inputs, and can be managed centrally through MXsecurity.

Features

- OT-centric Deep Packet Inspection for Modbus, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, OPC UA, Siemens S7 and more
- Intrusion Prevention System enabled by default
- Gen3 bypass
- Centralised management through MXsecurity
- Conformal coating for harsh environments
- Redundant dual power inputs with reverse polarity protection
- Secure Boot and DoS/DDoS protection
- Management via web console (HTTP/HTTPS), SSH, SNMPv1/v2c/v3, Telnet and TFTP
- Event logging to Syslog server, local storage or SNMP trap

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) LAN ports plus 1 x MGMT port (RJ45)
- Firewall throughput: max. 1000 Mbps / 80K pps (RFC 2544)
- IPS throughput: max. 500 Mbps / 40K pps (RFC 2544)
- Concurrent connections: max. 120K; connections per second: max. 6K (RFC 3511)
- Intrusion Prevention System (IPS) and Deep Packet Inspection (DPI)
- Gen3 bypass
- Redundant dual 12/24/48 VDC inputs, operating voltage 9.6 to 60 VDC
- Input current: 0.69 A (max)
- Reverse polarity protection
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Conformal coating
- Metal housing, DIN-rail or wall mounting
- Dimensions: 35 x 125 x 100 mm
- Weight: 385 g
- Console port: RS-232 via USB Type-C connector
- Alarm contact and digital input channels
- Certifications include DNV, ATEX, Class I Division 2, IECEx, EN 50121-4 and NEMA TS2
- MTBF: 2,929,641 hrs
- 5-year warranty

FAQs

Q: How many network ports does the EDF-G1002-BP-CT/KC have?
A: It provides two 10/100/1000BaseT(X) LAN ports and one dedicated 10/100/1000BaseT(X) management port, all RJ45.

Q: Which industrial protocols does Deep Packet Inspection support?
A: It inspects Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, MELSEC, Omron FINS, OPC UA, Siemens S7 Comm. and S7 Comm. Plus.

Q: Is the Intrusion Prevention System licensed separately?
A: IPS is enabled by default, but IPS pattern updates require an additional licence.

Q: What operating temperature range does this variant support?
A: This conformal-coated variant is rated for -10 to 60°C operation.

Q: How is the firewall powered and mounted?
A: It accepts redundant dual 12/24/48 VDC inputs (9.6 to 60 VDC) via a removable terminal block and mounts on a DIN-rail or wall.

Q: How can multiple firewalls be managed centrally?
A: The EDF-G1002-BP series supports centralised management through Moxa's MXsecurity platform.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
