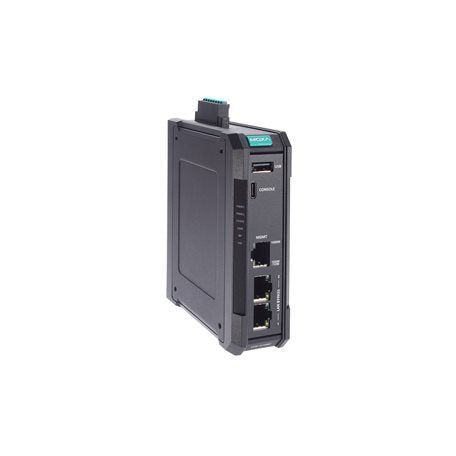

Moxa EDF-G1002-BP-CT | Industrial LAN Firewall, IPS, DPI, Gen3 Bypass, -10 to 60°C, 2x GbE

Authorised Moxa Partner

SKU:EDF-G1002-BP-CT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDF-G1002-BP-CT is an industrial LAN firewall with two Gigabit copper ports and a dedicated Ethernet management port, built to protect OT network edges. It combines an Intrusion Prevention System with deep packet inspection of industrial protocol data, and Gen3 LAN bypass keeps traffic flowing if the unit faults. This variant is rated for -10 to 60°C operation and features conformal coating for added protection in harsh environments.

The firewall installs bump-in-the-wire without disrupting the existing network, and supports up to 120K concurrent connections. It mounts on a DIN rail or wall in a metal housing, and is managed locally via web console, SSH and SNMP or centrally through MXsecurity. Secure Boot and a one-click firewall policy misconfiguration check help maintain system integrity.

Features

- Bump-in-the-wire installation without impacting the network
- Gen3 LAN bypass for system fault tolerance
- Industrial-grade IPS/IDS with Monitor and Protect modes
- Deep Packet Inspection of industrial protocol data
- Secure Boot for system integrity checking
- One-click firewall policy misconfiguration check
- Centralised management via MXsecurity
- MXstudio support for visualised industrial network management

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) ports
- 1 x Ethernet-based management port
- Intrusion Prevention System (IPS) and Deep Packet Inspection (DPI)
- Gen3 LAN bypass (software-configurable)
- Operating temperature: -10 to 60°C
- Conformal coating
- Max. 120K concurrent connections (RFC 3511)
- Alarm contact: resistive load 1 A @ 24 VDC
- Digital input: +13 to +30 V for state 1, -30 to +3 V for state 0, max. 8 mA
- Management: Web console (HTTP/HTTPS), SSH, Telnet, SNMPv1/v2c/v3, LLDP, TFTP, DDNS
- Metal housing with DIN-rail and wall mounting
- Reset button

FAQs

Q: What does Gen3 LAN bypass do on the EDF-G1002-BP-CT?
A: Gen3 LAN bypass is software-configurable and keeps network traffic flowing if the firewall experiences a fault, providing system fault tolerance for critical OT links.

Q: How is the EDF-G1002-BP-CT managed?
A: It can be managed locally through a web console (HTTP/HTTPS), SSH, Telnet, SNMPv1/v2c/v3, LLDP, TFTP and DDNS. Centralised management is available through MXsecurity, and MXstudio supports visualised industrial network management.

Q: What is the operating temperature range of this model?
A: The EDF-G1002-BP-CT operates from -10 to 60°C and has conformal coating. The -T sibling model covers a wider -40 to 75°C range.

Q: Does it need to be installed inline with the network?
A: It is designed for bump-in-the-wire installation, so it can be placed in an existing network without changing the network configuration or impacting traffic.

Q: What network protection capabilities does it provide?
A: It includes an industrial-grade IPS/IDS with Monitor and Protect modes and deep packet inspection of industrial protocol data. It also offers Secure Boot and a one-click firewall policy misconfiguration check.

Q: How can it be mounted?
A: The metal housing supports both DIN-rail and wall mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
