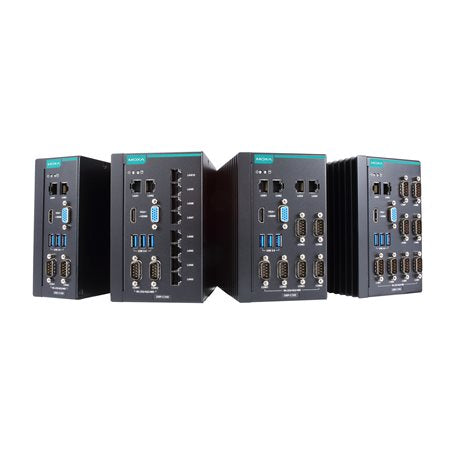

Moxa DRP-C100(CTO) | DRP-C100 DIN-Rail Computer, 11th Gen Intel Core, CTO

Authorised Moxa Partner

SKU:DRP-C100(CTO)

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DRP-C100 is a fanless DIN-rail industrial computer built on 11th Gen Intel Core processors, designed for field automation, data acquisition and edge computing in space-constrained cabinets. This CTO (configure-to-order) SKU lets you specify the processor, LAN and serial port count and operating system to suit your deployment, with Celeron, Core i5 and Core i7 options across the range.

The DRP-C100 series offers up to 10 Gigabit Ethernet ports and up to 8 RS-232/422/485 serial ports, along with 3 USB 3.0 ports, HDMI 2.0b and VGA outputs. Dual CFast and SD storage, TPM v2.0, a 12/24 VDC power input and a -30 to 60°C operating range suit it to rugged industrial environments, with ATEX, IECEx, Class I Division 2 and maritime certifications.

Features

- Fanless DIN-rail mountable design
- Intel Celeron or Core i5/i7 11th Gen processor options
- Up to 8 serial and 10 LAN ports
- Compact size to fit most field applications
- 30 to 60°C operating temperature range
- DNV, CID2, ATEX and IECEx certified
- Dual storage with CFast and SD slots
- Built-in RTC and watchdog timer

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor options: Intel Celeron 6305E, Core i5-1145G7E or Core i7-1185G7E depending on configuration
- Memory: 1 x SODIMM DDR4 slot, up to 32 GB
- Storage: 1 x CFast (SATA III) slot and 1 x SD 3.0 slot
- Ethernet: 2, 4 or 10 x 10/100/1000 Mbps RJ45 ports depending on model
- Serial: 2, 6 or 8 x RS-232/422/485 software-selectable DB9 male ports depending on model
- USB: 3 x USB 3.0 Type-A
- Video output: 1 x HDMI 2.0b, 1 x VGA
- Graphics: Intel UHD Graphics
- Security: TPM v2.0
- Power input: 12/24 VDC via screw-fastened Euroblock terminal
- Operating temperature: -30 to 60°C
- Humidity: 5 to 95% non-condensing
- Housing: metal, IP20, DIN-rail mounting
- Dimensions: 94 x 130 x 150 mm, 1,612 g (60 x 130 x 150 mm, 1,213 g for base -T models)
- Hazardous locations: ATEX, IECEx, Class I Division 2
- Maritime: DNV-CG-0339, IEC 60945, IACS E10

FAQs

Q: What does CTO mean for this DRP-C100 model?
A: CTO stands for configure-to-order. The processor, LAN and serial port count and operating system are specified at order time rather than being fixed.

Q: Which processors are available in the DRP-C100 series?
A: The series uses 11th Gen Intel processors: Celeron 6305E, Core i5-1145G7E or Core i7-1185G7E, depending on the configuration.

Q: Which operating systems does the DRP-C100 support?
A: Windows 11 Professional 64-bit, Windows 11 IoT Enterprise LTSC 2024 and Windows 10 IoT Enterprise LTSC 2021 are supported, along with Linux drivers for Debian 11 and 12, Ubuntu 22.04 LTS and RHEL 9.

Q: How many network and serial ports can it have?
A: Depending on the model, it provides 2, 4 or 10 Gigabit Ethernet ports and 2, 6 or 8 RS-232/422/485 serial ports.

Q: What is the operating temperature range?
A: The DRP-C100 operates from -30 to 60°C without a fan, suitable for harsh industrial cabinets.

Q: How is the DRP-C100 mounted and powered?
A: It mounts on a DIN rail and accepts a 12/24 VDC input through a screw-fastened Euroblock terminal.
