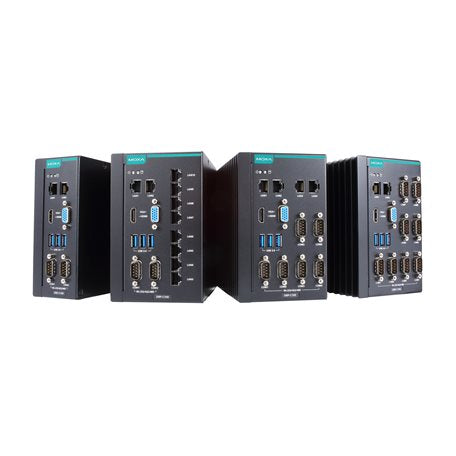

Moxa DRP-C100-C1-T-Win10 | DRP-C100 DIN-Rail Computer, Celeron 6305E, 8GB, 64GB, Win10 IoT

Authorised Moxa Partner

SKU:DRP-C100-C1-T-Win10

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DRP-C100-C1-T-Win10 is a compact, fanless x86 DIN-rail computer built around an Intel Celeron 6305E processor, with 8 GB DDR4 memory and a 64 GB CFast card preinstalled. It ships with Windows 10 IoT Enterprise LTSC 2021, so it is ready to deploy in industrial automation, machine control and edge data collection applications. Dual Gigabit LAN, two software-selectable RS-232/422/485 serial ports and three USB 3.0 ports make it suited to connecting legacy serial equipment alongside modern networks.

A metal housing, wide -30 to 60°C operating range and 12/24 VDC input suit control cabinets and harsh environments. Dual HDMI 2.0b and VGA outputs, TPM v2.0, a built-in watchdog timer and an RTC with battery backup support reliable, secure unattended operation. Maritime and hazardous location certifications broaden the range of installations it can serve.

Features

- Fanless, compact DIN-rail design with metal housing
- Wide -30 to 60°C operating temperature range
- Dual Gigabit LAN, 2 software-selectable RS-232/422/485 serial ports and 3 USB 3.0 ports
- Dual video outputs (HDMI 2.0b and VGA)
- TPM v2.0 for hardware-based security
- Built-in watchdog timer and RTC with battery backup
- Maritime (DNV, IEC 60945) and hazardous location (ATEX, IECEx, Class I Div 2) certifications
- Windows 10 IoT Enterprise LTSC 2021 preinstalled, with Linux drivers supported
- 12/24 VDC power input via Euroblock terminal

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Celeron 6305E processor (dual core, 4M cache, 1.80 GHz)
- Intel UHD Graphics
- 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- 64 GB CFast card pre-installed (CFast slot with SATAIII interface)
- 1 x SD slot, SD 3.0 interface (SDHC/SDXC)
- 2 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x RS-232/422/485 serial ports, software selectable (DB9 male)
- 3 x USB 3.0 type-A hosts
- HDMI 2.0b x 1 and VGA x 1 video outputs
- TPM v2.0
- Windows 10 IoT Enterprise LTSC 2021 64-bit preinstalled
- Input voltage: 12/24 VDC via screw-fastened Euroblock terminal
- Power consumption: 90 W
- Metal housing, IP20 rating
- Dimensions: 60 x 130 x 150 mm
- Weight: 1,213 g
- DIN-rail mounting
- Operating temperature: -30 to 60°C
- Storage temperature: -40 to 75°C
- Relative humidity: 5 to 95% (non-condensing)
- Built-in RTC with lithium-battery backup and watchdog timer

FAQs

Q: What operating system comes preinstalled on the DRP-C100-C1-T-Win10?
A: It ships with Windows 10 IoT Enterprise LTSC 2021 64-bit preinstalled on the 64 GB CFast card.

Q: Can the memory be expanded?
A: Yes. It has one SODIMM DDR4 slot with 8 GB preinstalled and supports up to 32 GB.

Q: What serial interfaces does it provide?
A: It has two DB9 male serial ports that are software selectable between RS-232, RS-422 and RS-485, supporting baud rates from 50 bps to 115.2 kbps.

Q: What is the operating temperature range?
A: The unit is rated for -30 to 60°C operation and -40 to 75°C storage, with 5 to 95% non-condensing humidity.

Q: How is it powered and mounted?
A: It runs from a 12/24 VDC supply connected to a screw-fastened Euroblock terminal and mounts on a DIN rail.

Q: Which other operating systems are supported on this platform?
A: The DRP-C100 platform supports Windows 11 Professional, Windows 11 IoT Enterprise LTSC 2024, and Linux distributions including Debian 11 and 12, Ubuntu 22.04 LTS and RHEL 9.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
