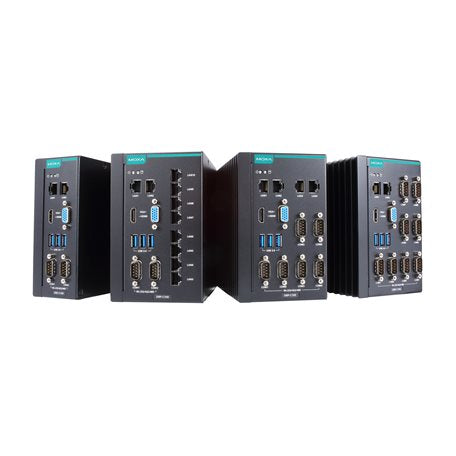

Moxa DRP-C100-C1-T | DRP-C100 DIN-Rail Computer, Celeron 6305E, 8GB, 2 LAN, 2 COM

Authorised Moxa Partner

SKU:DRP-C100-C1-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DRP-C100-C1-T is a fanless DIN-rail industrial computer built on an 11th Gen Intel Celeron 6305E processor with 8 GB of DDR4 memory pre-installed. It combines 2 Gigabit LAN ports and 2 software-selectable RS-232/422/485 serial ports, making it well suited to protocol conversion, data acquisition and edge control in factory, utility and transport cabinets. This model ships with no operating system pre-installed.

The compact 60 x 130 x 150 mm metal housing mounts on a DIN rail and operates from -30 to 60 C on a 12/24 VDC supply. Dual CFast and SD storage slots, three USB 3.0 ports, HDMI and VGA outputs and a built-in TPM 2.0 module give integrators flexible deployment options. Supported operating systems include Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, and Linux drivers for Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Features

- Fanless DIN-rail mountable design for silent, maintenance-friendly operation
- Compact footprint fits most field and cabinet applications
- Wide -30 to 60 C operating temperature range
- Dual storage design with CFast and SD slots
- Built-in TPM 2.0 module to protect against unauthorised access
- Battery cover with trap-door design for easy RTC battery swapping
- Software-selectable RS-232/422/485 serial ports
- Built-in watchdog timer for automatic reboot

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Celeron 6305E, dual core, 4M cache, 1.80 GHz
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- Storage slots: 1 x CFast (SATA III), 1 x SD 3.0 (SDHC/SDXC)
- Storage pre-installed: None
- Graphics: Intel UHD Graphics
- LAN: 2 x 10/100/1000 Mbps RJ45
- Serial: 2 x RS-232/422/485 software selectable, DB9 male
- USB: 3 x USB 3.0 Type-A
- Video: 1 x HDMI 2.0b, 1 x VGA
- Security: TPM v2.0
- Input voltage: 12/24 VDC, screw-fastened Euroblock terminal
- Power consumption: 90 W
- Housing: metal, IP20
- Dimensions: 60 x 130 x 150 mm
- Weight: 1,213 g
- Operating temperature: -30 to 60 C
- Storage temperature: -40 to 75 C
- Humidity: 5 to 95% non-condensing
- Operating system: none pre-installed
- MTBF: 584,337 hrs

FAQs

Q: Does the DRP-C100-C1-T come with an operating system?
A: No. This model has no OS pre-installed and no storage included. Supported operating systems are Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional, and Linux (Debian 11, Ubuntu 22.04 LTS, RHEL 9).

Q: What storage does it support?
A: It has one CFast slot (SATA III) and one SD 3.0 slot (SDHC/SDXC). No storage media is pre-installed with this SKU.

Q: How much memory can be installed?
A: The unit ships with 8 GB DDR4 in its single SODIMM slot and supports up to 32 GB maximum.

Q: What serial interfaces are available?
A: Two DB9 male ports, each software selectable between RS-232, RS-422 and RS-485, with baud rates from 50 bps to 115.2 kbps.

Q: What power supply does it need?
A: It runs from a 12/24 VDC input via a screw-fastened Euroblock terminal, with a power consumption of 90 W.

Q: Is it suitable for harsh environments?
A: It is rated for -30 to 60 C operation with 5 to 95% non-condensing humidity, and complies with IEC 60068-2-27 shock and IEC 60068-2-64 vibration standards. The housing is IP20, so install it inside a cabinet.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
