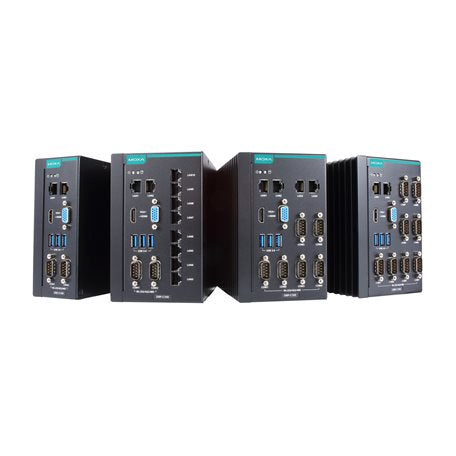

Moxa DRP-C100-C1-8L-T | DRP-C100 DIN-Rail Computer, Celeron 6305E, 8GB, 10x LAN

Authorised Moxa Partner

SKU:DRP-C100-C1-8L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DRP-C100-C1-8L-T is a fanless DIN-rail industrial computer built on an Intel Celeron 6305E processor with 8 GB DDR4 pre-installed. With 10 Gigabit Ethernet ports, 2 software-selectable RS-232/422/485 serial ports and a 12/24 VDC power input, it suits field automation, data acquisition and edge networking deployments that need a compact x86 platform with wide-temperature operation from -30 to 60°C.

This model ships without an operating system and supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Pro and Linux drivers (Debian 11, Ubuntu 22.04, RHEL 9). Dual CFast and SD storage slots, three USB 3.0 ports, HDMI and VGA video outputs and a built-in TPM 2.0 module make it a flexible, secure choice for industrial control cabinets.

Features

- Fanless DIN-rail mountable design for reliable, maintenance-free operation
- 10 Gigabit Ethernet ports for multi-network segmentation and device connectivity
- Wide operating temperature range of -30 to 60°C
- Built-in TPM 2.0 module protects the platform from unauthorised access
- Dual storage (CFast and SD) allows easy storage expansion
- Compact size fits most field applications
- Supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Pro and Linux (Debian 11, Ubuntu 22.04, RHEL 9) drivers

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Celeron 6305E, dual core, 4M cache, 1.80 GHz
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM DDR4 slot, up to 32 GB
- Storage: 1 x CFast slot (SATA III), 1 x SD 3.0 slot (SDHC/SDXC)
- LAN: 10 x 10/100/1000 Mbps auto-sensing RJ45 ports
- Serial: 2 x RS-232/422/485, software selectable
- USB: 3 x USB 3.0 Type-A hosts
- Video: 1 x HDMI 2.0b, 1 x VGA (15-pin D-sub)
- Graphics: Intel UHD Graphics
- Security: TPM v2.0
- Power input: 12/24 VDC
- Operating temperature: -30 to 60°C
- Fanless DIN-rail design, no operating system pre-installed

FAQs

Q: Does the DRP-C100-C1-8L-T come with an operating system?
A: No. This model ships without an operating system. It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Pro and Linux (Debian 11, Ubuntu 22.04, RHEL 9) drivers.

Q: How much memory can be installed?
A: It includes 8 GB DDR4 pre-installed and has one SODIMM DDR4 slot, supporting up to 32 GB.

Q: What power input does it use?
A: It operates from a 12/24 VDC input, suitable for industrial control cabinet power supplies.

Q: What storage options are available?
A: It has one CFast slot (SATA III) and one SD 3.0 slot supporting SDHC and SDXC cards.

Q: What is the operating temperature range?
A: The fanless design operates from -30 to 60°C.

Q: How many network and serial ports does it have?
A: It provides 10 x 10/100/1000 Mbps RJ45 LAN ports and 2 x RS-232/422/485 serial ports that are software selectable.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
