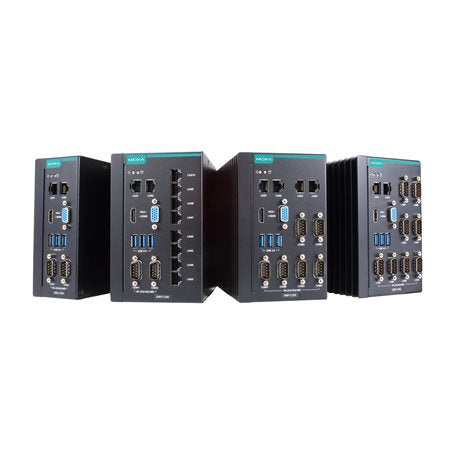

Moxa DRP-C100-C1-6C-T | DRP-C100 Fanless DIN-Rail Computer, Celeron 6305E, 8GB, 8x COM, -30 to 60C

Authorised Moxa Partner

SKU:DRP-C100-C1-6C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DRP-C100-C1-6C-T is a fanless DIN-rail industrial computer built around an Intel Celeron 6305E processor with 8GB of pre-installed DDR4 memory. It provides 8 software-selectable RS-232/422/485 serial ports, 2 Gigabit LAN ports, 3 USB 3.0 ports and VGA plus HDMI video output, making it well suited to serial device connectivity, data acquisition and edge computing in control cabinets and industrial sites.

Powered from a 12/24 VDC supply, this -T model operates across a wide -30 to 60°C temperature range. Dual storage via CFast and SD slots allows simple capacity expansion, and the single SODIMM DDR4 slot supports memory upgrades up to 32GB.

Features

- Fanless design for DIN-rail mounting
- Dual-storage design with CFast and SD slots for easy storage expansion
- Battery-fastener cover secures the battery, and a trap-door slot allows battery swapping without removing the cover
- Wide-temperature operation for industrial environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Celeron 6305E processor (dual core, 4M cache, 1.80 GHz)
- 8GB DDR4 pre-installed, 1 x SODIMM DDR4 slot, up to 32GB maximum
- 2 x LAN ports (10/100/1000 Mbps)
- 8 x software-selectable RS-232/422/485 serial ports (DB9 male)
- 3 x USB 3.0 ports
- 1 x VGA and 1 x HDMI video output
- 1 x CFast slot and 1 x SD slot
- 12/24 VDC power input
- Operating temperature: -30 to 60°C (-T model)

FAQs

Q: How many serial ports does the DRP-C100-C1-6C-T have?
A: It has 8 software-selectable RS-232/422/485 serial ports with DB9 male connectors.

Q: What processor and memory does this model include?
A: It uses an Intel Celeron 6305E dual core processor at 1.80 GHz with 8GB of DDR4 pre-installed. The SODIMM slot supports up to 32GB.

Q: What is the operating temperature range?
A: The -T model operates from -30 to 60°C, suitable for demanding industrial environments.

Q: What display outputs are available?
A: The computer provides 1 x VGA and 1 x HDMI video output.

Q: What storage options does it offer?
A: It has one CFast slot and one SD slot, giving a dual-storage design for easy expansion.

Q: What power input does it require?
A: It runs from a 12/24 VDC power input.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
