Moxa DRP-C100-C1-2L4C-T | DRP-C100 DIN-Rail Industrial Computer, Celeron 6305E, 8GB, 4 LAN, 6 COM

Authorised Moxa Partner

SKU:DRP-C100-C1-2L4C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

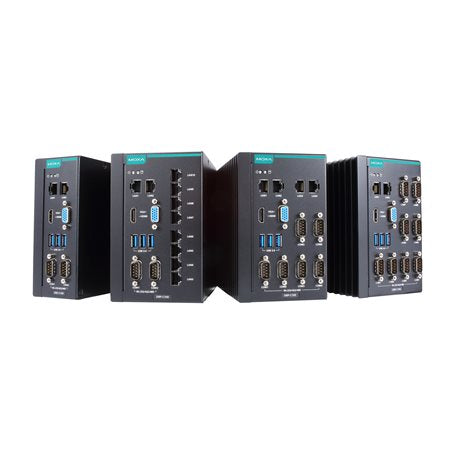

The Moxa DRP-C100-C1-2L4C-T is a fanless DIN-rail industrial computer from the DRP-C100 series, built around an Intel Celeron 6305E processor with 8 GB of DDR4 memory pre-installed. This variant combines 4 Gigabit LAN ports with 6 software-selectable RS-232/422/485 serial ports, making it well suited to protocol conversion, data acquisition and edge gateway roles where legacy serial equipment must be tied into Ethernet networks.

The metal housing, 12/24 VDC input and -30 to 60°C operating range suit control cabinets and harsh industrial environments. Local expansion and video are covered by 3 USB 3.0 ports, HDMI and VGA outputs, plus CFast and SD storage slots, and TPM v2.0 supports secure deployments. Windows 11 and Windows 10 IoT editions are supported, along with Linux drivers for Debian, Ubuntu and RHEL.

Features

- Fanless DIN-rail design with metal housing
- Operating range of -30 to 60°C
- Wide 12/24 VDC power input
- 6 software-selectable RS-232/422/485 serial ports for legacy device connectivity
- 4 Gigabit LAN ports with built-in 1.5 kV magnetic isolation
- TPM v2.0 security
- Supports Windows 11 Professional, Windows 11 IoT Enterprise LTSC 2024 and Windows 10 IoT Enterprise LTSC 2021
- Linux drivers for Debian 12/11, Ubuntu 22.04 LTS and RHEL 9
- Maritime and hazardous location certifications including DNV, IEC 60945, ATEX, IECEx and Class I Division 2

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Celeron 6305E processor (dual core, 4M cache, 1.80 GHz)
- 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- 4 x 10/100/1000 Mbps LAN ports (RJ45)
- 6 x RS-232/422/485 serial ports, software selectable (DB9 male)
- 3 x USB 3.0 Type-A
- 1 x HDMI 2.0b and 1 x VGA video output
- 1 x CFast slot (SATA III) and 1 x SD slot (SD 3.0)
- Intel UHD Graphics
- TPM v2.0
- 12/24 VDC input via screw-fastened Euroblock terminal
- Metal housing, IP20, DIN-rail mounting
- Operating temperature -30 to 60°C, storage -40 to 75°C
- Humidity 5 to 95% (non-condensing)
- Dimensions 94 x 130 x 150 mm, weight 1,612 g
- Built-in RTC and watchdog timer

FAQs

Q: How many serial and LAN ports does the DRP-C100-C1-2L4C-T have?
A: It provides 6 software-selectable RS-232/422/485 serial ports on DB9 male connectors and 4 x 10/100/1000 Mbps RJ45 LAN ports.

Q: Which operating systems are supported?
A: Windows 11 Professional, Windows 11 IoT Enterprise LTSC 2024 and Windows 10 IoT Enterprise LTSC 2021 are supported, along with Linux drivers for Debian 12/11, Ubuntu 22.04 LTS and RHEL 9.

Q: Can the memory and storage be expanded?
A: Yes. It ships with 8 GB DDR4 and has one SODIMM slot supporting up to 32 GB. Storage is provided through a CFast slot and an SD slot.

Q: What power supply does it require?
A: It accepts a 12/24 VDC input through a screw-fastened Euroblock terminal. A DC power source is required.

Q: What temperature range can it operate in?
A: The operating temperature range is -30 to 60°C, and it is fanless with a metal housing for use in control cabinets.

Q: What video outputs are available?
A: It has one HDMI 2.0b output and one VGA (15-pin D-sub) output, driven by Intel UHD Graphics.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
