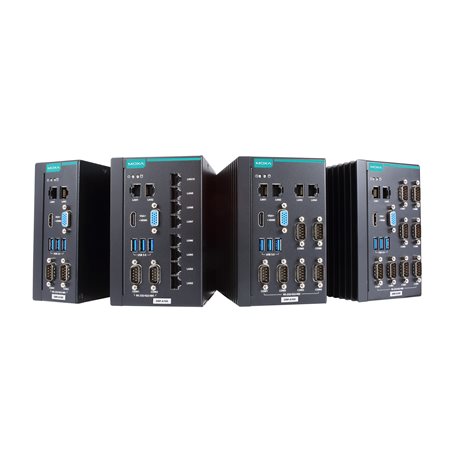

Moxa DRP-A100-E4-T-Win10 | DRP-A100 DIN-Rail Computer, Atom x6425E, 8GB, 64GB, Win10

Authorised Moxa Partner

SKU:DRP-A100-E4-T-Win10

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DRP-A100-E4-T-Win10 is a fanless DIN-rail industrial computer built around a quad-core Intel Atom x6425E processor at 2 GHz. This configuration ships with 8 GB DDR4 memory, a 64 GB CFast card and Windows 10 IoT Enterprise LTSC 2021 preinstalled, and operates across a wide -30 to 60°C temperature range.

Connectivity includes 2 Gigabit RJ45 LAN ports with 1.5 kV magnetic isolation, 2 software-selectable RS-232/422/485 serial ports, 3 USB 3.0 Type-A ports, and HDMI 2.0b and VGA video outputs. The metal housing, 12/24 VDC input, TPM v2.0 and maritime and hazardous location certifications make it well suited to control cabinets, transport, marine and industrial automation deployments.

Features

- Fanless, metal-housed DIN-rail design
- Wide operating temperature range of -30 to 60°C
- Software-selectable RS-232/422/485 serial ports
- Dual Gigabit LAN ports with 1.5 kV magnetic isolation
- TPM v2.0 onboard
- Maritime and hazardous location certifications
- Windows 10 IoT Enterprise LTSC 2021 preinstalled
- Built-in watchdog timer and RTC with battery backup

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Atom x6425E quad-core, 2 GHz, 1.5M cache
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- Storage: 64 GB CFast card pre-installed, 1 x CFast slot (SATAIII), 1 x SD 3.0 slot
- Operating system: Windows 10 IoT Enterprise LTSC 2021 64-bit preinstalled
- Graphics: Intel UHD Graphics
- Ethernet: 2 x 10/100/1000 Mbps RJ45 ports
- Serial: 2 x RS-232/422/485 (software-selectable, DB9 male), 50 bps to 115.2 kbps
- USB: 3 x USB 3.0 Type-A
- Video output: 1 x HDMI 2.0b, 1 x VGA (15-pin D-sub)
- Security: TPM v2.0
- Power input: 12/24 VDC via screw-fastened Euroblock terminal
- Power consumption: 50 W
- Housing: Metal, IP20
- Dimensions: 60 x 130 x 150 mm
- Weight: 1,213 g
- Mounting: DIN-rail
- Operating temperature: -30 to 60°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Safety and EMC: UL 62368-1, EN 62368-1, IEC 62368-1, FCC Part 15B Class A, BSMI
- Maritime: DNV-CG-0339, IEC 60945, IACS E10
- Hazardous locations: ATEX, IECEx, Class I Division 2
- MTBF: 1,693,597 hrs

FAQs

Q: Which operating system comes preinstalled on the DRP-A100-E4-T-Win10?
A: It ships with Windows 10 IoT Enterprise LTSC 2021 64-bit preinstalled on the 64 GB CFast card.

Q: Can the memory be upgraded?
A: Yes. It includes 8 GB DDR4 pre-installed in the single SODIMM slot, which supports up to 32 GB.

Q: What serial interfaces are supported?
A: It has 2 DB9 male serial ports that are software-selectable between RS-232, RS-422 and RS-485.

Q: What power supply does it require?
A: It accepts a 12/24 VDC input through a screw-fastened Euroblock terminal, with a power consumption of 50 W.

Q: What operating temperature range does it support?
A: It operates from -30 to 60°C with 5 to 95% non-condensing humidity, thanks to its fanless metal housing.

Q: Can it be used in marine or hazardous location applications?
A: The DRP-A100 series carries maritime certifications (DNV-CG-0339, IEC 60945, IACS E10) and hazardous location approvals (ATEX, IECEx, Class I Division 2).

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
