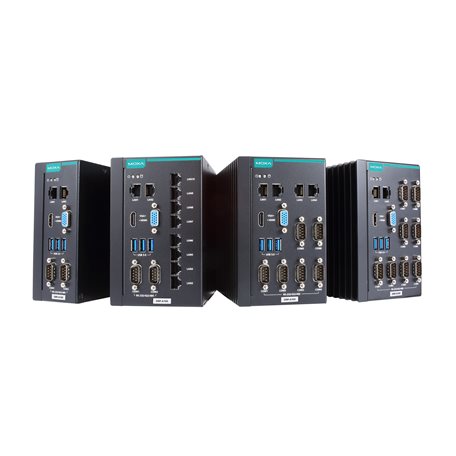

Moxa DRP-A100-E4-T | DRP-A100 DIN-Rail Computer, Atom x6425E, 8GB, 2 LAN

Authorised Moxa Partner

SKU:DRP-A100-E4-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DRP-A100-E4-T is a fanless industrial DIN-rail computer built on the Intel Atom x6425E quad-core processor, supplied with 8 GB of pre-installed DDR4 memory. This DRP-A100 series model provides 2 Gigabit Ethernet LAN ports and 2 serial ports, ships without an operating system, and is rated for -30 to 60°C operation, making it well suited to field and control cabinet deployments.

The compact metal housing mounts directly on a DIN rail and accepts 12/24 VDC power via a screw-fastened Euroblock terminal. Three USB 3.0 type-A ports, VGA and HDMI video outputs, a CFast slot and an SD slot provide flexible peripheral and storage options. The platform supports Windows 11 and Windows 10 IoT editions as well as Debian, Ubuntu and RHEL Linux distributions.

Features

- Fanless design with no moving parts for reliable DIN-rail installation
- Intel Atom x6425E quad-core processor for demanding edge computing workloads
- Wide -30 to 60°C operating temperature range for field applications
- Compact footprint that fits most control cabinet and field applications
- Dual Gigabit LAN and dual serial ports for connecting networks and legacy devices
- CFast and SD slots for flexible, expandable storage
- Supports Windows 11, Windows 10 IoT Enterprise, Debian, Ubuntu and RHEL

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Atom x6425E quad-core processor, 2 GHz, 1.5M cache
- 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB maximum
- Intel UHD Graphics
- 2 x auto-sensing 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x serial ports
- 3 x USB 3.0 type-A hosts
- 1 x VGA and 1 x HDMI video output
- 1 x CFast slot (SATA III) and 1 x SD slot (SD 3.0, SDHC/SDXC)
- 12/24 VDC power input via screw-fastened Euroblock terminal
- Operating temperature: -30 to 60°C
- Fanless metal housing, IP20, DIN-rail mounting
- Supplied without an operating system

FAQs

Q: Does the Moxa DRP-A100-E4-T come with an operating system?
A: No. This SKU is supplied without an operating system. The platform supports Windows 11 Professional, Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Debian 12 and 11, Ubuntu 22.04 LTS and RHEL 9.

Q: How much memory can be installed?
A: It ships with 8 GB of DDR4 pre-installed in the single SODIMM slot, and the slot supports memory up to 32 GB.

Q: What operating temperature range does this model support?
A: The -T model is rated for -30 to 60°C operation, suiting outdoor cabinets and unconditioned industrial environments.

Q: What storage options are available?
A: The unit has one CFast slot using a SATA III interface and one SD 3.0 slot supporting SDHC and SDXC cards.

Q: How is the DRP-A100-E4-T powered and mounted?
A: It runs from a 12/24 VDC input through a screw-fastened Euroblock terminal and mounts on a standard DIN rail in its fanless metal housing.

Q: What display outputs are provided?
A: The computer has one VGA and one HDMI video output, driven by Intel UHD Graphics.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
