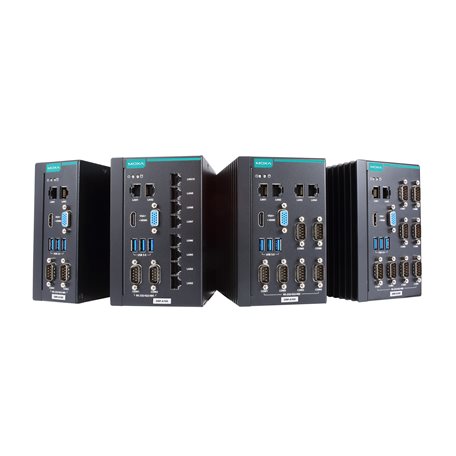

Moxa DRP-A100-E4-8L-T | DRP-A100 DIN-Rail Computer, Atom x6425E, 8GB, 10x LAN

Authorised Moxa Partner

SKU:DRP-A100-E4-8L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The DRP-A100-E4-8L-T is a fanless DIN-rail computer built on an Intel Atom x6425E quad-core processor with 8 GB DDR4 pre-installed and 10 Gigabit Ethernet ports. Its 12/24 VDC power input and -30 to 60°C wide operating temperature range suit it to industrial networking, data acquisition and edge computing deployments inside control cabinets.

The metal-housed x86 platform adds two software-selectable RS-232/422/485 serial ports, three USB 3.0 ports, and HDMI 2.0b and VGA video outputs. Storage is provided by a CFast slot and an SD slot, with a built-in TPM 2.0, watchdog timer and RTC. It supports Windows 10/11 IoT and Linux distributions including Debian, Ubuntu and RHEL, and carries maritime and hazardous location certifications.

Features

- Fanless, compact DIN-rail design with metal housing
- Ten Gigabit Ethernet ports with 1.5 kV built-in magnetic isolation
- Wide operating temperature range of -30 to 60°C
- Supports Windows 10/11 IoT and Linux (Debian, Ubuntu, RHEL) drivers
- Built-in TPM 2.0, watchdog timer and RTC with battery backup
- Maritime (DNV, IEC 60945) and hazardous location (ATEX, IECEx, Class I Div 2) certifications
- Dual video outputs (HDMI 2.0b and VGA)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Atom x6425E quad-core, 2 GHz, 1.5M cache
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM slot, up to 32 GB
- Ethernet: 10 x 10/100/1000 Mbps (RJ45) with 1.5 kV magnetic isolation
- Serial: 2 x RS-232/422/485 software-selectable (DB9 male)
- USB: 3 x USB 3.0 Type-A
- Video: 1 x HDMI 2.0b and 1 x VGA, Intel UHD Graphics
- Storage: 1 x CFast slot (SATAIII) and 1 x SD slot (SD 3.0)
- Security: TPM v2.0
- Power: 12/24 VDC input, 50 W, screw-fastened Euroblock terminal
- Operating temperature: -30 to 60°C
- Humidity: 5 to 95% non-condensing
- Housing: metal, IP20, DIN-rail mounting
- Dimensions: 94 x 130 x 150 mm
- Weight: 1,612 g

FAQs

Q: What operating systems does the DRP-A100-E4-8L-T support?
A: It supports Windows 11 Professional, Windows 11 IoT Enterprise LTSC 2024 and Windows 10 IoT Enterprise LTSC 2021, with Linux drivers for Debian 12, Debian 11, Ubuntu 22.04 LTS and RHEL 9.

Q: How much memory does it include and can it be expanded?
A: It ships with 8 GB DDR4 pre-installed. The single SODIMM DDR4 slot supports up to 32 GB maximum.

Q: What temperature range can it operate in?
A: The -T model is rated for -30 to 60°C operation, making it suitable for unconditioned cabinets and harsh industrial sites.

Q: What storage options are available?
A: It has one CFast slot (SATAIII interface) and one SD slot (SD 3.0, SDHC/SDXC).

Q: What power input does it require?
A: It runs from a 12/24 VDC supply via a screw-fastened Euroblock terminal, with power consumption of 50 W.

Q: Is it approved for marine or hazardous location use?
A: It carries maritime certifications (DNV-CG-0339, IEC 60945, IACS E10) and hazardous location approvals (ATEX, IECEx, Class I Division 2).

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
